2V0-41.24 Practice Exam Questions with Answers VMware NSX 4.X Professional V2 Certification

According to the VMware NSX Documentation, these are two of the ways that you can use to configure Distributed Firewall on VDS:

NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to send API requests to the NSX Manager node.

NSX UI: This is a graphical user interface that allows you to configure and manage Distributed Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-9175-5514750E901B.html

In NSX, Unicast traffic type should be used in TraceFlow when validating connectivity between two specific virtual machines, such as App and DB VMs, that reside on different segments. Unicast traffic is directed from one source to a single destination, making it suitable for testing direct connectivity between two VMs.

Cluster Format Type: This parameter specifies the type of cluster format that will be used for the NSX Application Platform deployment.

Upload Kubernetes Configuration File: NSX Application Platform requires a Kubernetes environment, and the configuration file for Kubernetes must be uploaded to facilitate the deployment.

In an NSX environment, a Punting Traffic Group for the NSX Edge uplinks must be configured before enabling stateful active-active Source NAT (SNAT). This configuration ensures that traffic is appropriately handled and forwarded between the NSX Edge nodes in an active-active setup, allowing stateful connections to be maintained across multiple Edge nodes.

Auditor: Allows users to view settings and logs without making changes.

Full access: Provides complete control over all NSX settings and configurations.

None: No permissions are granted, restricting access completely.

Read: Allows users to view configurations and settings without editing capabilities.

The esxcli network firewall ruleset set -r syslog -e true command is used to enable the firewall ruleset for syslog on an ESXi host. Setting the -e flag to true allows syslog traffic through the ESXi firewall, enabling remote logging for syslog messages from the transport node.

Using a Transport Node Profile allows the administrator to apply configuration changes, such as specifying an NTP server, across multiple Edge Transport Nodes efficiently. This method is scalable and avoids the need for manual configuration on each individual node. Once the Transport Node Profile is updated, the configuration can be pushed to all associated nodes.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-69DF70C2-1769-4858-97E7-B757CAED08F0.html#:~:text=On%20the%20north%2Dsouth%20traffic,Guest%20Introspection%20(GI)%20platform .

The main components on the edge node for north-south malware prevention perform the following functions:

• IDS/IPS engine: Extracts files and relays events and data to the security hub

North-south malware prevention uses the file extraction features of the IDS/IPS engine that runs on NSX Edge for north-south traffic.

• Security hub: Collects file events, obtains verdicts for known files, sends files for local and cloud-based analysis, and sends information to the security analyzer

• RAPID: Provides local analysis of the file

• ASDS Cache: Caches reputation and verdicts of known files

According to the VMware NSX Documentation, this is the NSX feature that can be leveraged to achieve consistent policy configuration and simplicity across sites:

NSX Federation: This feature allows you to create and manage a global network infrastructure that spans across multiple sites using a single pane of glass. You can use this feature to synchronize policies, segments, gateways, firewalls, VPNs, load balancers, and other network services across sites.

In NSX and VMware environments, an alarm in a suppressed state can typically be set to remain suppressed for a specific duration measured in hours. This allows administrators to temporarily ignore the alarm for a set period while working on a resolution without continuous alerts.

NSX Intelligence provides a visual overview of network connections within the NSX domain, allowing administrators to see the traffic flows between different VMs and networks. It offers detailed visibility into network traffic patterns, application dependencies, and security posture, making it a valuable tool for monitoring and troubleshooting within NSX environments.

An overlay segment is a layer 2 broadcast domain that is implemented as a logical construct in the NSX-T Data Center software. Overlay segments do not require any configuration on the physical switches, and they allow for optimal east/west communication between workloads on different ESXi hosts. Overlay segments use the Geneve protocol to encapsulate and decapsulate traffic between the hosts. Overlay segments are created and managed by the NSX Manager.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-316E5027-E588-455C-88AD-A7DA930A4F0B.html

The RouterLink port between a Tier-1 Gateway and a Tier-0 Gateway is automatically created when the Tier-1 Gateway is connected to the Tier-0 Gateway through the NSX UI. This link enables routing between the Tier-1 and Tier-0 gateways without the need for manual configuration of segments or logical switches.

Configure ECMP on the Tier-0 gateway: ECMP (Equal-Cost Multi-Path) allows multiple paths for traffic between the Tier-0 Gateway and the upstream physical routers, effectively distributing the traffic load and improving throughput. By enabling ECMP, you can reduce congestion and increase bandwidth utilization, thus addressing performance issues.

Deploy Large size Edge node/s: Deploying larger Edge nodes can provide more resources (CPU, memory, and network interfaces) to handle higher throughput and reduce congestion. This is especially important if the existing Edge node is overwhelmed by the amount of traffic.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-C5CD87FD-8095-49F3-97CE-E606AB89162E.html?hWord=N4IghgNiBcIGYEcAmA7ABGFkCeBnAlriAL5A

The netcpa process is responsible for Local Control Plane (LCP) connectivity with the Central Control Plane (CCP) in NSX. Using the command esxcli network ip connection list | grep netcpa, administrators can verify the connectivity status between the LCP on the ESXi host and the CCP, ensuring proper communication for NSX operations.

None: No permissions are granted, restricting the user’s access entirely.

Read: Grants read-only access, allowing the user to view configurations and settings without making changes.

Auditor: Similar to Read, but typically includes access to audit logs and more detailed viewing permissions for compliance purposes.

Full Access: Grants complete control over all NSX configurations and settings, allowing unrestricted access.

In an NSX environment, each overlay segment is uniquely identified by a VNI ID (Virtual Network Identifier). The VNI is used to distinguish different overlay networks within the NSX environment and is essential for troubleshooting, as it helps administrators identify specific segments where traffic is encapsulated and isolated.

In NSX, the FABRIC message ID is used to capture and export syslog events related to host preparation and other fabric-related activities. These events are important for tracking and troubleshooting the setup and configuration of NSX components across the fabric, including host preparation events.

An L2 VPN (Layer 2 VPN) in an NSX 4.x environment allows you to extend a Layer 2 network across different sites or data centers. This enables the connected environments to share the same broadcast domain, meaning that broadcast traffic can be transmitted between sites as if they were on the same local network. This is particularly useful for scenarios where you need to maintain Layer 2 connectivity across geographically dispersed locations.

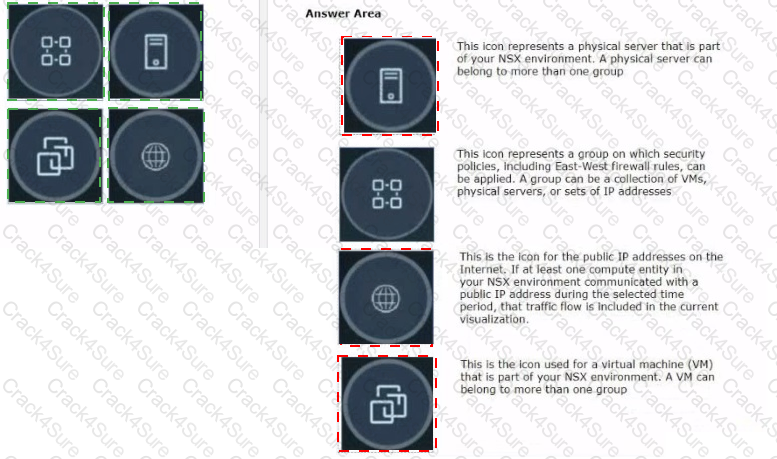

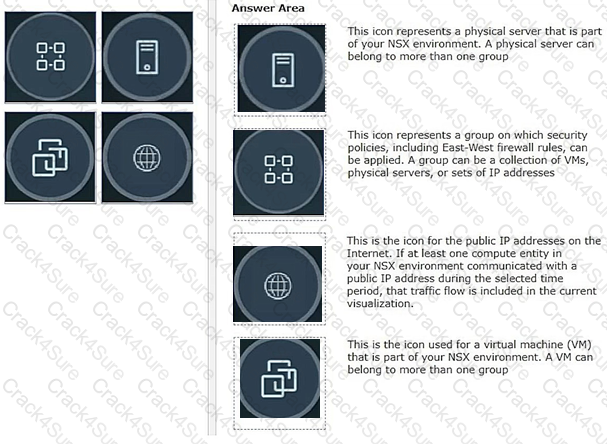

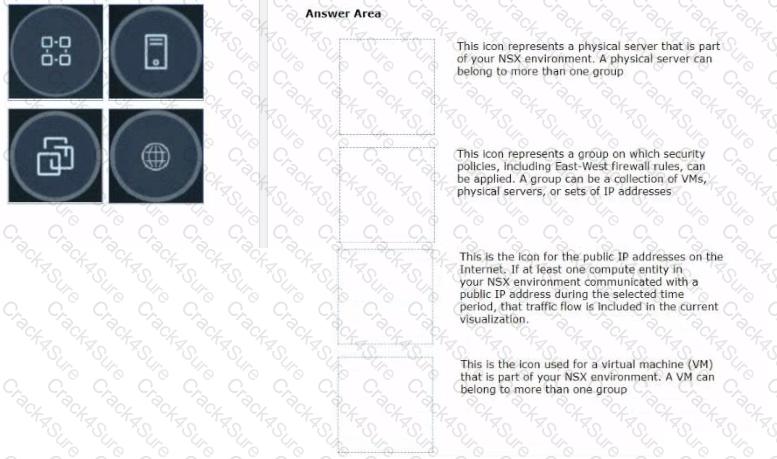

A screenshot of a computer application Description automatically generated

https://docs.vmware.com/en/VMwa re-NSX-Intelligence/4.0/user-guide/GUID-DC78552B-2CC4-410D-A6C9-3FE0DCEE545B.html

When the NSX UI is inaccessible, an NSX administrator can use the get support-bundle file vcpnv.tgz command in the CLI on the NSX Manager to generate a support bundle. This command creates a compressed file (vcpnv.tgz) containing logs and diagnostic information needed for troubleshooting.

Distributed Firewall on VDS is a feature of NSX-T Data Center that allows users to install Distributed Security for vSphere Distributed Switch (VDS) without the need to deploy an NSX Virtual Distributed Switch (N-VDS). This feature provides NSX security capabilities such as Distributed Firewall (DFW), Distributed IDS/IPS, Identity Firewall, L7 App ID, FQDN Filtering, NSX Intelligence, and NSX Malware Prevention. To enable this feature, the following requirements must be met in the environment:

The NSX version must be 3.2 and later1. This is the minimum version that supports Distributed Security for VDS.

The VDS version must be 6.6.0 and later1. This is the minimum version that supports the NSX host preparation operation that activates the DFW with the default rule set to allow.

References:

Overview of NSX IDS/IPS and NSX Malware Prevention

To implement SSL certificates for the NSX Manager Cluster VIP, the correct method is to SSH into the NSX Manager (using the Cluster VIP IP) and run the nsxcli cluster certificate vip install command. This command installs the SSL certificate for the VIP, ensuring that the cluster's SSL certificate is properly configured for secure communications.

AS-Path Prepend: This attribute allows you to prepend one or more AS numbers to the AS path of a route, making it appear longer and less preferable to other BGP routers. You can use this attribute to manipulate the inbound traffic from your BGP peers by advertising a longer AS path for some routes and a shorter AS path for others.

MED: This attribute stands for Multi-Exit Discriminator and allows you to specify a preference value for a route among multiple exit points from an AS. You can use this attribute to manipulate the outbound traffic to your BGP peers by advertising a lower MED value for some routes and a higher MED value for others.

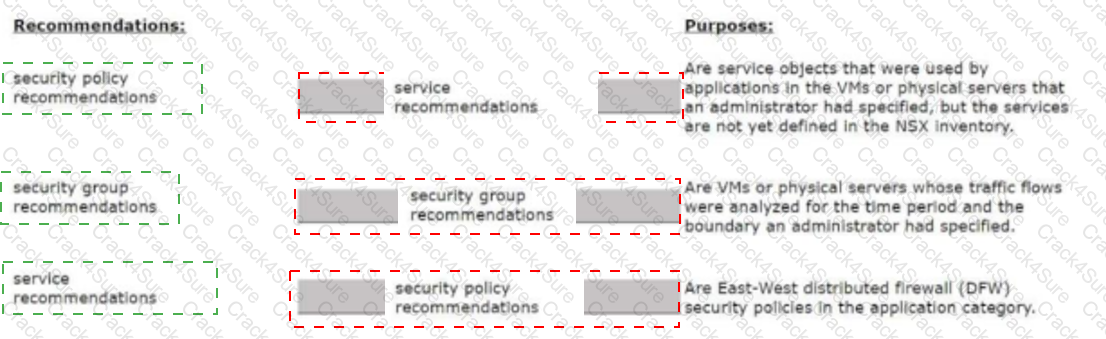

Security policy recommendations: Are East-West distributed firewall (DFW) security policies in the application category12.

Security group recommendations: Are VMs or physical servers whose traffic flows were analyzed for the time period and the boundary you had specified12.

Service recommendations: Are service objects that were used by applications in the VMs or physical servers that you had specified, but the services are not yet defined in the NSX inventory12.

https://docs.vmware.com /en/VMware-NSX-Intelligence/4.1/user-guide/GUID-BA3B0D67-4AA8-439E-A845-4598DAD6B9D0.html

The MAC Table on an ESXi host is used to determine the location of a particular workload for frame-forwarding decisions. This table maps MAC addresses to specific interfaces, enabling the ESXi host to forward frames to the correct destination based on the MAC address of the workload. This is crucial for efficient Layer 2 forwarding decisions within the host.

IP Pool: This allows you to define a range of IP addresses within NSX that the TEPs can use.

DHCP Server: This enables the TEPs to automatically obtain IP addresses from a DHCP server configured in the network.
