VCF 9.0 explicitly states: “The VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster,” and then enumerates those layers. The first layer is the set of components that integrate the workload cluster with Supervisor-backed resources, including aCloud Provider Plug-inthat integrates with the Supervisor and enables infrastructure integrations such as persistent volume requests being passed to the Supervisor (which is integrated with Cloud Native Storage). The second layer isCluster API, described as providing “declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” driven by resources that represent the cluster, the VMs making up the cluster, and cluster add-ons. The third layer is theVirtual Machine Service, which provides a declarative API for managing VMs and associated vSphere resources and is used to manage the lifecycle of the control plane and worker node VMs hosting a VKS cluster.

Therefore, optionAis the only answer that matches the three lifecycle controller layers defined in the VCF 9.0 documentation.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.

VCF 9.0 positions VKS clusters as Kubernetes-native environments where platform teams install and manage “standard packages” and add-ons. In VCF Automation’s VKS overview, VMware states that a set of packages is automatically included with a VKS cluster, includingkapp-controllerandsecret-gen controller. These components are part of theCarveltoolchain used for packaging and deploying applications/configuration in a Kubernetes-friendly, declarative way.

In addition, the VCF 9.0 CLI “package” workflows explicitly supportytt overlaysduring package installation/updates (for example, --ytt-overlay-file and --ytt-overlays), which are configuration mechanisms associated with Carvel-based packaging workflows.

Helmis the other widely used Kubernetes package manager for installing and configuring applications through charts and values, and is commonly used by DevOps teams on Kubernetes clusters such as VKS for app deployment and configuration management. By contrast, Fluent Bit is a log shipper, Multus is a CNI multiplexer, and Grafana is a visualization tool—none are package management tools.

In VCF 9.0, ingress is described as part ofVKS cluster networking. The documentation’s VKS Cluster Networking table lists“Cluster ingress”and identifies its role asrouting inbound pod traffic. It further clarifies that this function is delivered by athird-party ingress controller, and explicitly namesContouras an example (“you can use any third-party ingress controller, such as Contour”).

That mapping is exactly what optionAdescribes: Contour is deployed to provideingresscapabilities so that inbound requests from outside the cluster can be routed to Kubernetes services and pods according to ingress rules. In other words, Contour is not a storage component (that would align to CSI/CNS/pvCSI), not a node lifecycle manager (that is handled by VKS/Cluster API/VM Service), and not an infrastructure health monitoring tool (that would be metrics/observability tooling). VCF 9.0 positions Contour specifically within theingresspart of the networking feature set, makingAthe correct answer.

A ReplicaSet is a core Kubernetes workload controller used in VKS clusters to maintainavailability and steady-state capacityfor stateless applications. Its primary purpose is to ensure that adesired number of identical pod replicasare running continuously. If a pod is deleted, crashes, or is evicted because a node fails, the ReplicaSet detects that the current number of matching pods has dropped below the target and immediately creates replacement pods to restore the requested replica count. Conversely, if too many matching pods exist (for example, due to manual creation or a transient surge), it scales down by deleting excess pods to return to the desired state.

This behavior makes ReplicaSets foundational to reliable, self-healing application operation in Kubernetes and therefore in VKS. In practice, administrators and DevOps teams usually interact with ReplicaSets indirectly through higher-level controllers likeDeployments, which manage rolling updates and revisions while using ReplicaSets underneath to enforce the replica count for each version of an application. Options A, B, and D map to other Kubernetes objects (Service, StatefulSet, and DaemonSet respectively), not ReplicaSet.

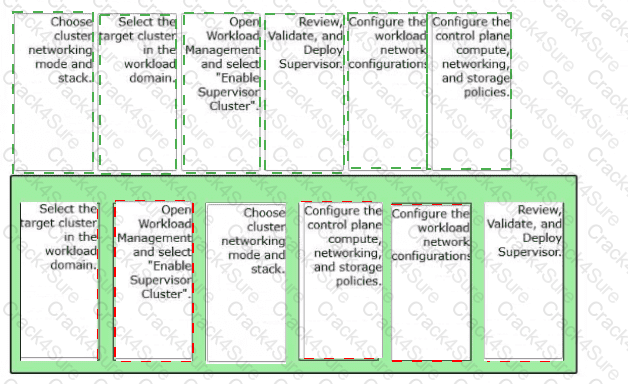

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported "in-place" migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial "Workload Management" setup phase.

When you build Kubernetes-aware policy constructs, “groups” are commonly used to collect objects so you can apply consistent controls (security posture, traffic rules, observability scope, etc.) to a set of endpoints. In VCF 9.0 documentation, the Kubernetes member types that can be used for group-based collection includeKubernetes NodeandKubernetes Serviceas supported member object categories. Nodes represent the worker compute endpoints that run workloads, while Services represent stable networking front-ends for sets of pods (and are often the anchoring object for policy and routing decisions at the Kubernetes layer). Using Node-based grouping helps apply policies to the infrastructure execution points where workloads run, and Service-based grouping helps apply policies consistently to application entry points and east-west communication targets, regardless of pod churn. This combination is especially useful in Kubernetes-centric operational models because it aligns policy scope with both (1) where workloads execute (nodes) and (2) how workloads are exposed and discovered (services).

The VCF 9.0 documentation explicitly states that“the VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster.”Those three controller layers map directly to the answer choices:

Cloud Provider Plug-in: VKS-provisioned clusters include components needed to integrate with vSphere Namespace resources, including aCloud Provider Plug-inthat integrates with the Supervisor and supports infrastructure-integrated functions (for example, passing persistent volume requests to the Supervisor which integrates with Cloud Native Storage).

Cluster API: The documentation describesCluster APIas providing declarative APIs for “cluster creation, configuration, and management,” including resources for the VMs and cluster add-ons.

Virtual Machine Service: TheVirtual Machine Serviceprovides declarative APIs to manage VMs and associated vSphere resources, and is used to manage the lifecycle of the control plane and worker node VMs that host a VKS cluster.

CNI and CSI are important cluster components, but the document distinguishes these from thethree controller layersresponsible for lifecycle management.

In VCF 9.0 VKS clusters, network policy is a core Kubernetes networking control implemented by the cluster’s CNI (Antrea or Calico). The VCF documentation’s “VKS Cluster Networking” table describesNetwork policyas the feature that “controls what traffic is allowed to and from selected pods and network endpoints,” and identifies Antrea or Calico as the providers for this capability. That definition precisely matches optionB: it governs pod-to-pod and pod-to-external endpoint communication rules. This is different from ingress routing (which the same table describes separately as “Cluster ingress … routing for inbound pod traffic”), so option C is not correct for “network policy.” It is also different from NodePort behavior (external access via a port on each worker node through the Kubernetes network proxy), which is explicitly listed as “Service type: NodePort.” Finally, creating/operating clusters natively in Supervisor is a broader lifecycle function (Cluster API/VKS API), not the definition of network policy. Therefore,NetworkPolicyis the Kubernetes-layer mechanism to define and enforce allowed traffic flows.

Hosts and Clusters

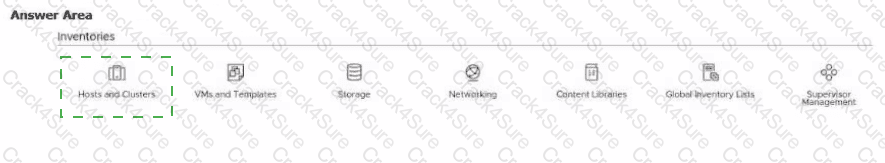

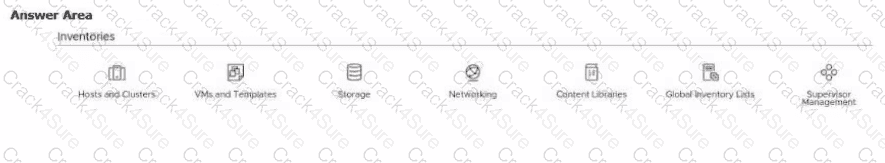

To create avSphere Zone(used as a Supervisor Management Zone and/or Workload Zone), the administrator must start from the vSphere Client inventory wherevCenterand its clusters are managed. That’s why the correct starting point in the “Inventories” toolbar isHosts and Clusters—it is the entry point used to select the vCenter object and the target clusters.

VCF 9.0 documents the zone-creation workflow as:navigate to vCenter, thenSelect Configure, thenselect vSphere Zones, and finally clickAdd New vSphere Zone. After naming the zone, youselect a vSphere cluster to add to the zoneand finish the wizard.

This sequence matches the intent of the hotspot: you must first open the inventory view that exposes vCenter and clusters (Hosts and Clusters), then perform the configuration steps under vCenter to define vSphere Zones. Once created, these zones can later be selected during Supervisor deployment (for multi-zone placement) or assigned to namespaces for workload placement.

A service mesh is an application communication layer that standardizesservice-to-service trafficinside Kubernetes. Instead of each development team building custom logic for retries, timeouts, encryption, and telemetry, the mesh provides these capabilities consistently across workloads. This is typically done by inserting a data plane (often sidecar proxies or node-level proxies) that intercepts inbound and outbound traffic for each microservice, plus a control plane that distributes configuration and identity material.

The key outcomes align directly to optionB: communication becomespossible(reliable connectivity patterns),structured(consistent routing rules, policies, and identity), andobservable(metrics, logs, and distributed tracing for east-west traffic). A service mesh commonly adds controls such asmTLS encryption, fine-grainedtraffic policy(allow/deny, rate limits, circuit breaking), and progressive delivery patterns (canary/blue-green) without changing application code.

By contrast, service discovery (A) is usually a built-in Kubernetes function, load balancing/autoscaling across sites (C) is not the primary definition of a service mesh, and a single centralized global routing table (D) is not how meshes are typically described or implemented.

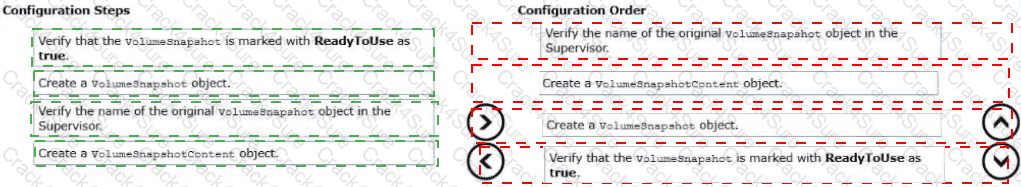

VMware Cloud Foundation 9.0 documents a dedicated backup-and-restore approach forWorkload Managementwhere different components use different tools. Forworkloadsrunning on vSphere Supervisor–based Kubernetes (bothvSphere PodsandVKS cluster workloads), the documented solution isVelero, specifically theVelero Plugin for vSphereinstalled and configured on the Supervisor. The “Considerations for Backing Up and Restoring Workload Management” table explicitly lists: “Backup and restore vSphere Pods — Velero Plugin for vSphere” and “Backup stateless and stateful workloads on a VKS cluster and restore to a cluster provisioned by VKS — Velero Plugin for vSphere.”

The same section also clarifies thatSupervisor backups(via vCenter file-based backup) are for restoring theSupervisor control plane/stateand VKS node VMs—not for restoring workloads themselves—so workloads must be backed up separately.

Therefore, the correct tool for backing up and restoring workloads on clusters provisioned by vSphere Supervisor isVelero (using the Velero Plugin for vSphere).

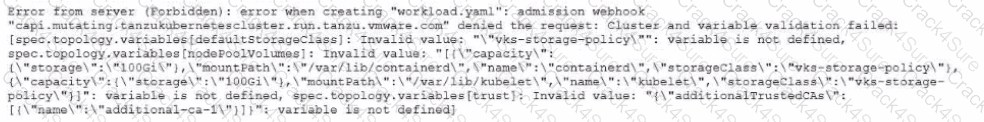

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 "extra" pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the "Desired State") must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.
