The correct answers are A and B . In the exhibit, the LAN interface shows a fixed VLAN ID value of 100 . Because this value is directly configured in the template rather than represented as a per-device variable, every branch that uses this template will receive the same LAN VLAN ID. This supports option A. Versa configuration examples show that VLAN-tagged interfaces are created by defining logical units with a vlan-id, and organizations then use those tagged interfaces for traffic identification and routing services.

For the MPLS WAN network , the VLAN ID field is shown as a variable or bind-data style value rather than a fixed number. This allows each branch device to receive a different MPLS VLAN ID during onboarding, depending on the branch-specific values supplied in the workflow or device bind data. Therefore, branches can have separate VLAN IDs on the MPLS WAN transport, which supports option B. Versa SD-WAN troubleshooting output also shows WAN interfaces as logical VNI subinterfaces, such as vni-0/1.0 and vni-0/2.0, mapped to SD-WAN transport networks like INET and MPLS.

Option C is incorrect because an INET interface can be untagged, commonly represented with VLAN ID 0. Option D is incorrect because the MPLS VLAN field is intentionally parameterized, not incorrectly configured.

The correct answer is C . In Versa Secure SD-WAN, Direct Internet Access, or DIA, provides local internet breakout from the branch rather than backhauling internet-bound traffic through a hub. Versa design documentation explains that the DIA architecture creates an internal connection between the tenant VRF and the WAN transport VR and uses CGNAT to translate internet-bound LAN traffic to the public IP address associated with the WAN transport interface. It specifically states that the main DIA components include the CGNAT function for translating internet-bound traffic and that DIA is configured using Director Workflows when configuring tunnels.

When the workflow template is used and the DIA option is selected for the internet breakout tunnel, Director automatically builds the required DIA infrastructure, including the NAPT/CGNAT configuration associated with the internet-facing transport network. This is why manual creation of the CGNAT pool and rule is not required in the workflow-based method. Option A describes a manual configuration approach, not the workflow-generated behavior. Option B is incorrect because NAT must be associated with the internet-facing breakout path, not simply the LAN interface. Option D is incorrect because DIA normally requires address translation for LAN users accessing the public internet.

The correct answers are A, B, and E . Versa Operating System, or VOS , is the software platform used for Versa SD-WAN branch and headend functions. Versa troubleshooting documentation explicitly refers to common runtime state across SD-WAN Controller, branch, and hub devices , confirming that VOS is used for Controller and branch-style SD-WAN roles. Versa monitoring documentation also lists SD-WAN branches, SD-WAN Controller nodes, SD-WAN hubs, vCPEs, and uCPEs as assets that are monitored and managed in Versa Director, which aligns with VOS being used as a branch/edge and controller platform.

VOS can also act as a uCPE platform . Versa documentation includes procedures to configure uCPE on a VOS device, showing that VOS can host or support uCPE deployment use cases.

The originally provided answer A, C, D is not correct. A Log Collector or log forwarder function belongs to the Versa Analytics architecture, not the VOS branch role; Versa’s design guide states that the log forwarder is part of the Versa Analytics node or can run as a standalone log-forwarder server. A Zookeeper arbiter is also not a standard VOS SD-WAN device role in this context.

The correct answer is B . Versa documentation for internet speed tests explains that when you run an internet speed test from a Director node, it creates approximately 200 sessions . This is useful for measuring aggregate throughput, but it does not represent the behavior of a single application flow. The same documentation states that you can run a speed test with a single session from the device CLI, and that this is useful for simulating file transfer rates when using SCP or FTP .

Therefore, when the goal is to understand how a single file transfer behaves, the CLI-based single-session test is the best option. A default Director-based test may produce higher aggregate results because multiple sessions can use parallelism and better fill the pipe.

show interfaces brief is useful for interface status and addressing, but it does not measure file-transfer throughput. SLA latency is useful for path-quality monitoring, but latency alone does not show single-session TCP throughput.

The correct answer is A . Versa’s handy troubleshooting CLI command reference lists show system package-info as the command used to view information about the VOS software image running on the CPE .

This command is useful before upgrade planning because it confirms the installed software package and helps validate whether the device is on the expected release. Administrators can compare the running version against the target upgrade image, verify upgrade prerequisites, and ensure that branch and Controller releases are compatible with required features such as internet speed testing, SD-WAN policy behavior, or security services.

show system uptime only tells how long the system has been running. show interfaces brief provides operational and administrative interface status, MAC address, tenant, VRF, and IP address information. show class-of-services interfaces brief helps troubleshoot QoS or shaping behavior. None of those commands directly identifies the VOS software package. Therefore, for checking the running image before an upgrade, the correct command is show system package-info.

Comprehensive and Detailed 150 to 250 words of Explanation From Versa Networks SDWAN Topics:

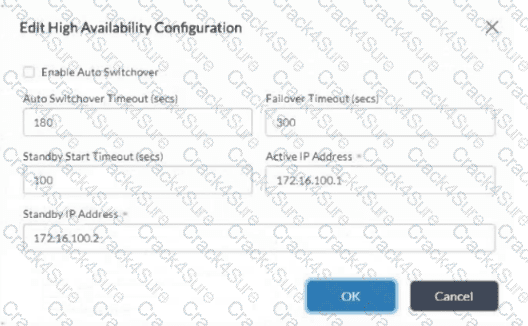

The correct answers are B and D . In the exhibit, Enable Auto Switchover is not selected. However, the Failover Timeout value is configured as 300 seconds . Versa Director HA documentation states that the Failover Timeout is the timeout period before the standby Director node can promote itself to become the active Director node. Therefore, if the active or primary Director fails, the backup Director can automatically assume the active role after the failover condition and timeout are met.

The important distinction is that Auto Switchover controls revertive behavior after recovery, not the initial standby takeover during failure. Versa documentation explains that Director HA is non-revertive by default. This means that when the designated master or primary Director comes back online after recovery, it is not automatically promoted back to active unless automatic switchover is enabled. To make the designated active Director automatically reclaim the active state after recovery, Enable Auto Switchover must be selected and the Auto Switchover Timeout must expire.

The correct answer is A . Versa CGNAT troubleshooting documentation shows the command show cgnat acl info < tenant-id > for viewing CGNAT access lists used for traffic matching. The example output includes columns such as ACL handle , RuleId , Category , Precedence , VRF , Source IP , and Destination IP . It also shows tenant ID and total filters.

This command is useful when a CGNAT rule exists in configuration but sessions are not being translated. By checking the ACL output, the administrator can confirm whether the correct source prefix, destination prefix, VRF, and rule precedence are actually programmed in the dataplane. If the wrong VRF or subnet is shown, the rule may never match the intended traffic.

System uptime and CPU usage are operational health indicators. SLA metrics are SD-WAN path-quality values. BGP AS path and local preference are routing attributes. None of these directly show CGNAT access-list match programming.

The correct answers are B and C . During a migration from a legacy WAN, such as MPLS Layer 3 VPN, to Versa Secure SD-WAN, an SD-WAN gateway is used to allow communication between SD-WAN-enabled branches and legacy WAN sites. Versa SD-WAN design guidance states that an SD-WAN gateway allows sites connected to the SD-WAN VPN network to communicate with sites connected to a legacy MPLS VPN network. It also explains that this gateway facilitates route exchange between the MPLS underlay network and the SD-WAN VPN network, typically using a dynamic routing protocol such as BGP.

For this design, the hub or gateway must be configured with the Gateway option for the underlay transport so it can act as the interconnect point between the legacy and SD-WAN domains. Versa documentation further describes configuring a BGP peering session on the MPLS transport VR of the gateway to exchange routes from the MPLS provider to the SD-WAN network, and notes that Director Workflows can automate this configuration. Spoke-to-Spoke-Direct is not sufficient for legacy interconnect, and SD-WAN traffic steering policies do not advertise routes.

The correct answer is A . Versa throughput troubleshooting documentation includes a specific section titled Check that Packets Are not Dropped by CoS . It states that if a CoS shaper or rate limiter is configured on the VOS device, it may drop packets when traffic exceeds the configured shaping rate. To check whether CoS is dropping packets, Versa recommends commands including show class-of-services interfaces brief and show class-of-services interfaces detail interface-name.

The detailed interface output displays traffic statistics such as TX packets, TX packets dropped, TX bytes, TX bytes dropped, and per-traffic-class drops. This is exactly the evidence needed to confirm whether shaping or QoS enforcement is causing the observed loss.

show alarms last-n 10 may reveal major events but will not provide per-interface CoS drop counters. show system uptime only indicates how long the system has been running. show cgnat tenants is relevant for NAT state and tenant CGNAT resources, not QoS drops.

The correct answer is A . Versa SD-WAN data-path troubleshooting documentation instructs administrators to connect to the VSM control plane with vsh connect vsmd and then use show vsm p2mp local-tunnel-sites 0 to check the status of local site objects. The example output includes the local site key, neighbor IP, site type, site name, branch ID, tenant ID, and detailed WAN link information. It also shows fields such as WAN local VRF ID, WAN local link name, circuit information, link ID, behind-NAT status, shaping rate, public and private addresses, link flags, transport domain, and SLA interval.

This command is therefore highly relevant when validating whether the local SD-WAN site has learned and built the correct WAN transport objects for overlay tunnel creation. If a circuit is mapped to the wrong transport domain or has incorrect NAT/public/private address state, the local-tunnel-site output is one of the best places to confirm it.

The other commands are useful for software version, CGNAT summary, or CPU usage, but they do not show the detailed SD-WAN local tunnel-site transport mapping.

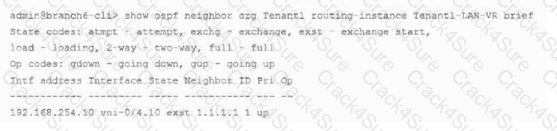

The correct answer is B . The exhibit shows the OSPF neighbor in the exst state, which means Exchange Start . Versa documentation lists the OSPF neighbor state codes and identifies exst as “exchange start,” followed by exchange, loading, and full. In normal OSPF adjacency formation, neighbors progress through initialization and two-way communication before they negotiate database exchange. If the neighbor becomes stuck in ExStart or Exchange, a common and highly probable cause is an MTU mismatch between the two OSPF peers. During database description packet negotiation, the peers must agree on parameters that allow LSDB exchange; an MTU mismatch can prevent the adjacency from advancing to Full.

Option A is less likely because an area mismatch usually prevents the neighbor relationship from forming correctly rather than leaving it stuck in ExStart. Option C is also incorrect because the neighbor has already progressed beyond early states, which indicates that bidirectional communication has occurred. Option D is not the best answer because dropping OSPF multicast 224.0.0.5 would typically prevent discovery or keep the adjacency in an earlier state, not specifically in ExStart. Therefore, the probable cause is an interface MTU mismatch.

The correct answer is C . Versa documentation states that for Releases 22.1.3 and later , the speed test factors in network latency to derive results. In these releases, the speed test is performed in three stages : a ping test, an upload test, and a download test. The ping test calculates link latency, and the speed test uses that latency data while performing the upload and download portions.

The same documentation notes that the speed test can measure bandwidth speeds up to 1 Gbps, with actual measurement depending on factors such as in-path shapers and latency. It also states that the test may use up to 45 MB of data per upload or download in the best case and 90 MB for a complete test.

Older releases behave differently. For Releases 21.2 and earlier, the speed test is performed in two stages: upload and download. Therefore, because the question specifically states Release 22.1.3 on both client and server, the correct sequence is ping, upload, and download.

The correct answer is A . Versa monitoring documentation states that when an administrator selects a provider organization in Director and opens the Summary tab, the screen displays several panes. The Asset Inventory pane displays the number of tenants, SD-WAN branches, SD-WAN Controller nodes, vCPEs, SD-WAN hubs, uCPEs, Director nodes, and Analytics nodes in the organization.

This pane is useful for quickly validating the managed estate and confirming whether expected infrastructure objects exist under the provider organization. It also provides a Details button to display asset information in tabular format, which can help during audits or operational checks.

Package Information shows software package details for the selected node, not organization-wide inventory. Uptime shows how long a node and its software have been running. High Availability shows Director HA information. These panes are useful, but they do not provide the organization-level asset count requested in the question.
