Persistence overrides load balancing decisions by maintaining client-to-server affinity.

The configuration provided utilizes Priority Group Activation in conjunction with the min_active_members setting. Priority groups allow an administrator to define primary servers and " backup " servers within the same pool. The BIG-IP prioritizes traffic based on the assigned priority number, with the highest number receiving traffic first.

In this specific configuration, the priority 3 group is the primary group. Therefore, connections are first distributed to all pool members with priority 3 as long as they are available. The system will continue to use only the priority 3 group unless the number of available members in that group falls below the min_active_members value, which is set to 2.

If the priority 3 group has fewer than two active members, the BIG-IP " activates " the next available priority group (priority 2) and distributes traffic among the remaining members of priority 3 and all members of priority 2. This cascading logic continues down the list. Consequently, if both the priority 3 group and the priority 2 group have fewer than two members available, traffic is directed to the priority 1 group. This ensures that even in a multi-server failure scenario, the system has a last-resort group of servers to handle the traffic.

Option D is incorrect because if only one member of priority 3 goes down, there are still two members active (10.12.10.8 and 10.12.10.9). Since 2 is not less than the min_active_members threshold of 2, the priority 2 group will not yet be activated. Option B is incorrect because traffic flows from high priority to low priority, not the other way around.

In BIG-IP configuration, health monitors can be applied at three distinct levels: the node, the pool, or the individual pool member. To ensure that a specific application service—in this case, a database service on port 1521—is functioning correctly for the entire pool, the administrator should apply the monitor at the pool level. Navigating to Local Traffic > Pools > DB.Pool > Properties allows the administrator to select one or more monitors from the " Available " list and move them to the " Active " list.

Applying a monitor at the pool property level ensures that the BIG-IP checks the health of every member assigned to that pool using the same logic. If a database-specific monitor (such as a TCP handshake or an Oracle/SQL check) fails for a specific member, the BIG-IP marks that member as " offline " for that specific pool, preventing new connections from being sent to it. While monitors can be applied to Pool Members (Option D) to give different members unique monitoring logic, it is more administratively efficient to apply it to the pool properties when all servers are expected to behave identically. Applying it to Nodes (Option C) would only verify that the IP address is up (typically via ICMP), which does not guarantee that the database service on port 1521 is actually responding. Finally, Profiles (Option A) are used to define how traffic is handled once it is accepted by a Virtual Server, not for the proactive health checking of backend resources. Therefore, the pool properties page is the standard location for configuring service-specific availability requirements.

WAN-optimized TCP profiles improve performance for high-latency Internet clients, while LAN profiles are optimal for backend servers.

Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.

Within the Interfaces list, the administrator can select the specific physical port (e.g., 1.1 or 1.2) and modify its properties. By default, the media speed is set to " Auto, " but the drop-down menu allows for manual selection of specific speeds (e.g., 100Mb/s, 1Gb/s, 10Gb/s) and duplex settings (Full or Half). While these changes can also be made via the TMOS Shell (TMSH) (Option B) using the modify net interface command, the question asks for the standard location, which in most administrative contexts refers to the primary GUI path. System > Configuration (Option D) is used for global device settings like NTP, DNS, and licensing, not for interface-specific physical layer parameters. The Front Console (Option A), referring to the LCD panel on physical appliances, is primarily used for initial management IP setup and viewing system alerts, but does not provide the granular interface configuration required for media speed adjustments.

The issue of " lost shopping carts " in an ecommerce environment is a classic symptom of a missing or improperly configured Persistence Profile. In modern web applications, session data—such as items added to a cart—is often stored locally on the specific web server that initially handled the user ' s request. If the BIG-IP system load balances a user ' s subsequent request (like clicking " Checkout " ) to a different server among the 50 webservers, the new server will not have the session data, and the user will appear to have an empty cart.

While Least Connections (node) is an efficient load balancing algorithm, it makes a new decision for every connection unless persistence is enabled. To resolve this, the administrator must implement a persistence mechanism. HTTP Cookie Persistence (Option A) is the industry standard for web applications. By assigning a cookie persistence profile to the Virtual Server, the BIG-IP inserts a unique cookie into the HTTP response. When the user ' s browser returns that cookie in future requests, the BIG-IP identifies the specific server that handled the first request and c onsistently directs the user back to that same server for the duration of their session.

Sip_info (Option B) is a persistence method for VOIP traffic and is not applicable to web traffic. Ratio load balancing (Options C and D) merely changes the distribution frequency but still does not guarantee that a specific user will stay on the same server across multiple requests. Therefore, adding a cookie persistence profile is the direct procedural fix to maintain session state and ensure ecommerce functionality.

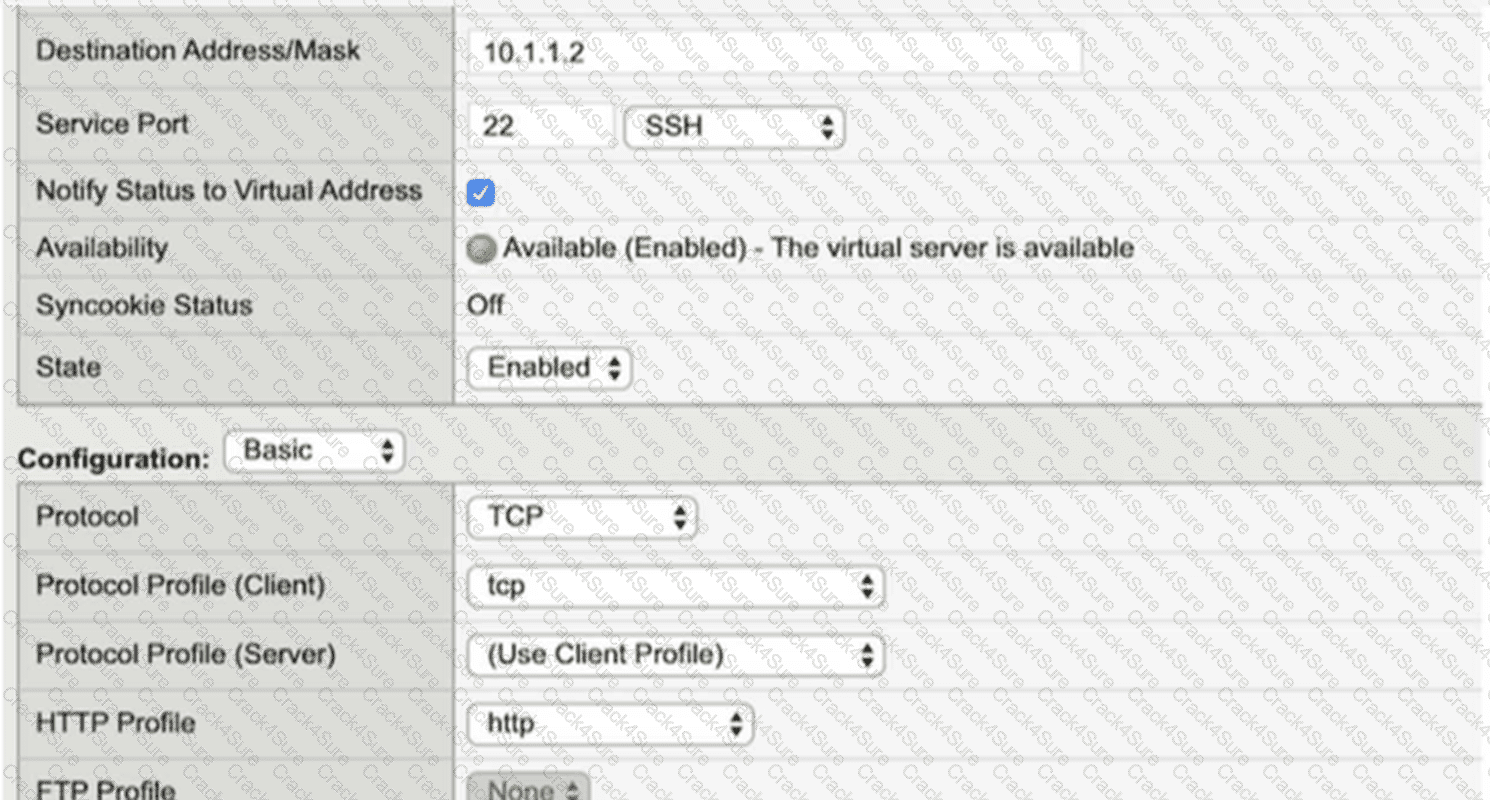

The virtual server is intended to process SSH traffic on TCP port 22 , but the exhibit shows that the standard http HTTP profile is assigned. This is the configuration error. An HTTP profile enables BIG-IP Layer 7 HTTP processing and is appropriate only when the virtual server is expected to process HTTP protocol traffic. F5 documentation defines its purpose directly: “An HTTP profile defines the way that you want the BIG-IP system to manage HTTP traffic.”

SSH is not HTTP. It is an independent application protocol transported over TCP , conventionally using port 22 . Therefore, an ordinary SSH load-balancing virtual server should retain the TCP protocol/profile while having HTTP Profile set to None . F5 ' s SSH virtual-server configuration guidance specifically uses service port 22 for SSH and does not require an HTTP profile.

Options B, C, and D do not address the fault. The destination address 10.1.1.2 correctly identifies the virtual server, while source 0.0.0.0/0 appropriately permits clients from any source. Changing the protocol to UDP would be incorrect because SSH requires TCP.

Reference Topics: Virtual Server configuration; HTTP profiles; TCP profiles; application-protocol profile assignment; SSH traffic handling.

SSH is a TCP-based service. A TCP monitor validates service availability without requiring application-layer inspection.

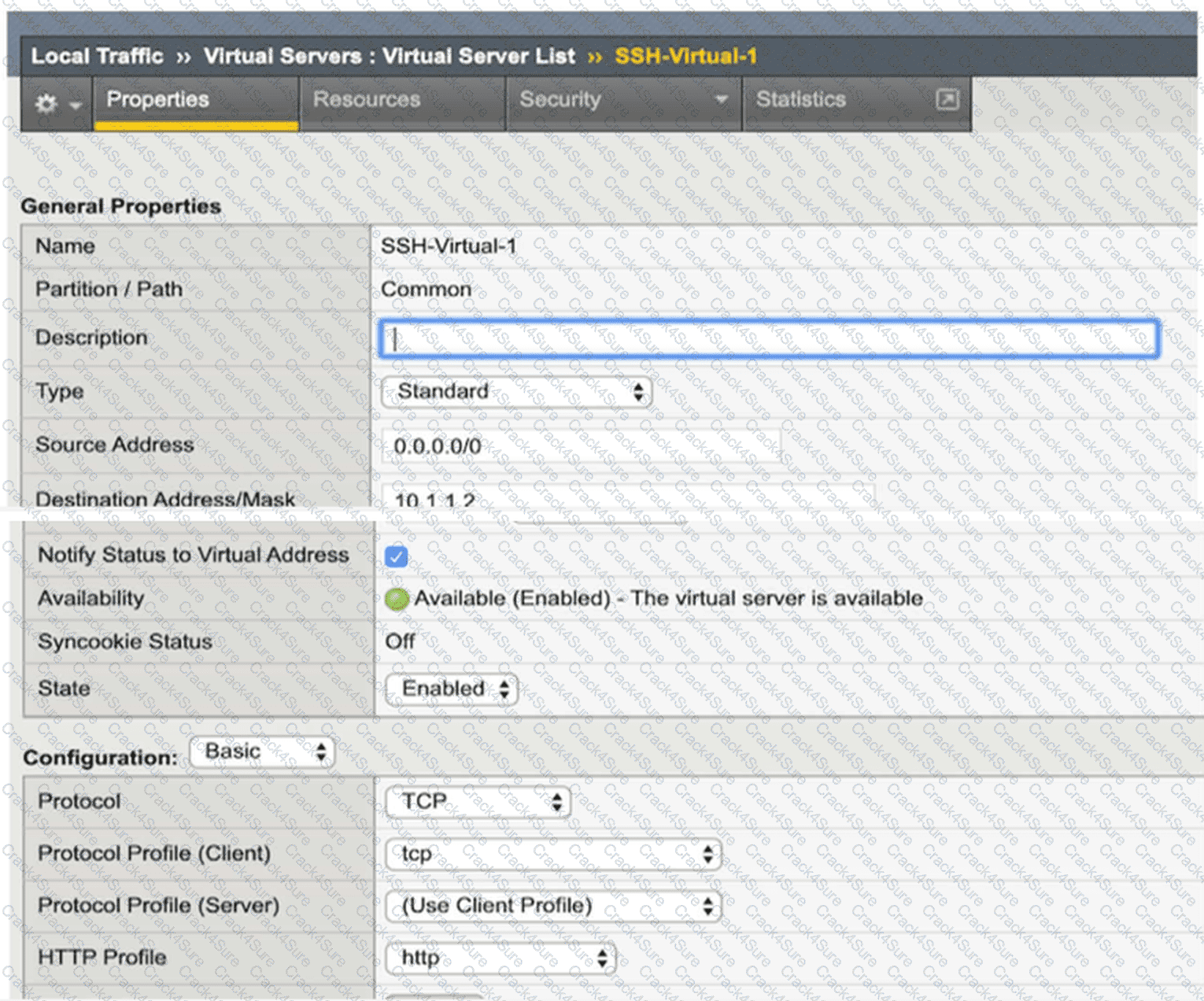

The configuration error is the HTTP Profile = http setting. The virtual server is intended to load balance SSH , which operates over TCP port 22 and is not an HTTP application protocol. The configured TCP protocol and TCP profile are therefore appropriate, but an HTTP profile should not be attached to this SSH virtual server.

F5 documentation states that an HTTP profile defines how BIG-IP manages HTTP traffic . The standard http profile operates in Reverse proxy mode by default and invokes BIG-IP ' s HTTP protocol processing. F5 separately documents Transparent HTTP proxy mode as the mode that can forward invalid HTTP traffic instead of dropping it. This distinction is important because an SSH protocol exchange is not syntactically valid HTTP traffic.

Setting HTTP Profile to None removes unnecessary Layer 7 HTTP parsing and leaves the virtual server handling the SSH connection through its TCP profile. The other changes are inappropriate: SSH requires TCP rather than UDP; the source address does not need to equal the virtual server ' s destination IP; and changing the destination to 0.0.0.0/0 is unrelated to the application-protocol mismatch.

Reference Topics: Local Traffic Profiles ? HTTP Profiles , Proxy Mode , TCP profiles , Virtual Server profile assignment .

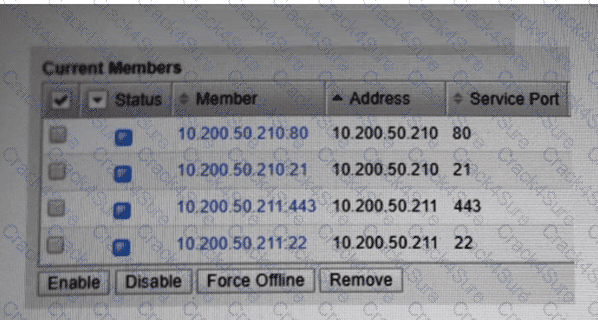

This question addresses the critical architectural distinction between " member-based " and " node-based " load balancing in environments where servers are multi-homed or host multiple virtualized services. On a BIG-IP, a node represents the underlying IP address of a physical or virtual server, while a pool member represents a specific combination of that IP and a service port (e.g., 10.1.1.10:80).

When multiple pools reference the same IP address across different ports or Virtual Servers, using Least Connections (member) (Option D) only balances connections relative to that specific pool. For example, if Pool_A and Pool_B both use Server_X, and Pool_A has 100 connections while Pool_B has only 5, a member-based algorithm for Pool_B only sees the 5 connections and may continue to send traffic there even if Server_X is CPU-saturated by Pool_A.

The Least Connections (node) algorithm (Option B) solves this by tracking the aggregate total of all active connections directed to that specific node (IP address) across every pool on the system. By selecting the node with the absolute lowest total connection count, the BIG-IP ensures a more equitable distribution of work at the hardware resource level. Predictive methods (Options A and C) use a ranking system based on the trend of connection counts over time, but for the specific requirement of maintaining an equal number of current connections on multi-service servers, the direct Least Connections (node) calculation is the standard and most effective procedural choice.

By default, BIG-IP load balancing algorithms (such as Round Robin) distribute connections evenly across all available pool members. However, persistence profiles override normal load balancing decisions by forcing subsequent connections from a client to be sent to the same pool member.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Persistence creates a client-to-server mapping that is honored before load balancing algorithms are applied.

When persistence is enabled, BIG-IP may repeatedly select the same pool member even if others are available.

This directly alters load balancing behavior.

Why the other options are incorrect:

A. Adding a OneConnect profileOneConnect optimizes server-side TCP connections but does not change which pool member is selected.

B. Enabling SNAT automapSNAT affects source address translation, not pool member selection.

C. Enabling a fallback host in the HTTP profileA fallback host is only used when no pool members are available.

Correct Resolution:

Adding a persistence profile alters load balancing behavior by maintaining client affinity to a specific pool member.

A Performance (Layer 4) virtual server does not inspect or process application-layer data such as HTTP headers or cookies. Therefore, only Layer 4–compatible persistence methods can be used.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Source Address Affinity persistence operates at Layer 4 and uses the client IP address to maintain session persistence.

It is fully compatible with Performance (Layer 4) virtual servers.

It works regardless of encryption, making it suitable for TLS-secured applications.

Why the other options are incorrect:

B. Cookie persistenceRequires an HTTP profile and Layer 7 inspection, which is not supported on Performance virtual servers.

C. Microsoft RDP persistenceIs protocol-specific and not applicable to web-based TLS traffic.

D. Host persistenceRequires HTTP host header inspection, which is not available at Layer 4.

Correct Resolution:

Source Address Affinity persistence is the appropriate choice for maintaining persistence on a Performance (Layer 4) virtual server handling TLS traffic.

Below is Batch 1 (Questions 1–10) extracted only from your uploaded document that are directly related to BIG-IP Administration: Data Plane Configuration topics (Virtual Servers, Pools, Load Balancing, Monitors, Persistence, SNAT, Profiles).

I have excluded system-only, licensing, support, hardware, HA management-only, and admin UI questions that are not Data Plane–focused.

Source: Your uploaded TMOS Administration v2.0 document

? BATCH 1 (10 Questions)

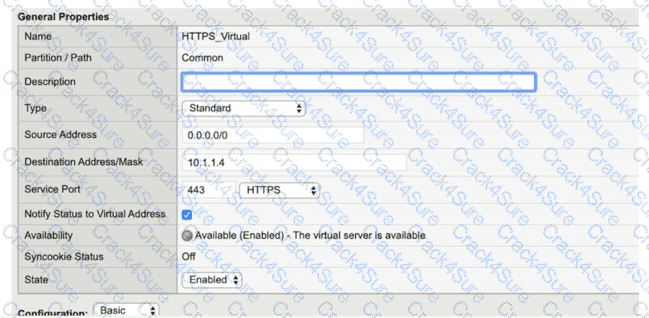

When a single IP address (Virtual Server) must host multiple hostnames (e.g., site1.com, site2.com) over HTTPS, the BIG-IP must be able to present the correct SSL certificate for each site during the initial handshake. This requirement is handled by a technology called Server Name Indication (SNI).

To implement this on the BIG-IP, the administrator must use a Client SSL profile because the encryption is occurring between the user (Client) and the Virtual Server. Within the Client SSL profile settings, there is a field called Server Name. By creating multiple Client SSL profiles—each with a different " Server Name " (the hostname) and its corresponding certificate—and attaching them all to the same Virtual Server, the BIG-IP can inspect the SNI extension in the client ' s " Client Hello " packet. It then selects the specific profile that matches the requested hostname.

Option A is incorrect because " Client Name " is not the standard field name used for SNI hostname matching in the profile. Options B and C refer to Server SSL profiles, which manage the connection between the BIG-IP and the backend servers. While Server SSL profiles also have a " Server Name " field (used to send SNI to a backend server), the requirement here is to provide encrypted communication for " users " accessing the virtual server, which definitively requires a Client-side SSL configuration.

The log message “Intercept exhaustion” indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Each SNAT IP address provides a finite number of available source ports.

When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.

The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.

Why the other options are incorrect:

A. Increase the timeout of the SNAT addressesIncreasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.

B. Remove the SNAT pool and apply SNAT AutomapSNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues. This is not a direct or recommended fix for SNAT exhaustion.

C. Remove an IP address from the SNAT poolThis would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.

Correct Resolution:

By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.

To determine if an iRule is influencing traffic for a specific Virtual Server, the administrator must verify the association between the Virtual Server object and any applied scripts. In the BIG-IP Configuration Utility (GUI), this association is found under the Resources tab of the specific Virtual Server. While there is an " iRules " sub-menu under Local Traffic, checking the Virtual Server ' s Resources tab is the definitive way to see which specific rules are currently active and in what order they are being processed for that particular traffic flow.

From the Command Line Interface (CLI), the tmsh list /ltm virtual < virtual_server > command provides a full text-based output of the virtual server ' s configuration. If iRules are applied, they will appear within a " rules { ... } " block in the command output. This is more effective than Option A, which only lists the contents of the iRule itself but does not show if or where it is applied. Option C is a common misconception; while some versions of the GUI have reorganized menus, the standard location for managing the association of profiles, policies, and iRules to a Virtual Server remains the " Resources " section. By identifying the applied iRule, an administrator can then review the script logic—often containing commands like pool or node—to see if it is overriding the default pool selection based on specific HTTP headers, URI paths, or client IP addresses.

Performance (Layer 4) virtual servers rely on FastL4 profiles to provide high-speed L4 processing without full proxy overhead.

Below is BATCH 2 (next 10 questions) extracted only from your uploaded document that are clearly related to BIG-IP Administration: Data Plane Configuration topics.

?As requested, I have strictly excluded questions related to:

Licensing

HA / Device Trust / Sync-only

Logging destinations

User roles

Hardware, EUD, support processes

System-only administration

Source: Your uploaded TMOS Administration v2.0 document

HTTP Compression on a BIG-IP system is an optimization feature that reduces the size of HTTP responses sent to clients, thereby saving bandwidth and improving page load times for end-users. To implement this functionality on a Virtual Server, the system requires two specific profiles to work in tandem: an HTTP profile and a Compression profile.

The HTTP profile (Option E) is a prerequisite because compression is an application-layer (Layer 7) operation. The BIG-IP must be " HTTP-aware " to parse the incoming requests and outgoing responses. The HTTP profile allows the BIG-IP to inspect the Accept-Encoding header from the client (to see if the client supports gzip or deflate) and to modify the Content-Encoding and Vary headers in the server ' s response. Without the HTTP profile, the Virtual Server operates at Layer 4 (TCP) and sees the traffic only as an opaque stream of bytes, making compression impossible.

The Compression profile (Option B) contains the actual settings and engine for the task. It defines which content types should be compressed (e.g., text/html, application/javascript), the compression level, and the minimum content length required before compression is applied. While a Stream profile (Option D) is used for data replacement (search and replace) and SSL profiles (Option C) are used for encryption, they do not provide compression logic. By applying both the HTTP and Compression profiles, the BIG-IP can successfully intercept server responses, compress the payload according to the configured policy, and deliver the optimized data to the user, effectively offloading the CPU-intensive compression work from the backend web servers.

The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync-Failover group share a consistent configuration. When an administrator makes a change on any member of the group—whether it is the active or the standby device—the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.

If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious: choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.

WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.

The Local Traffic > Network Map provides a single consolidated view within the BIG-IP Configuration Utility that displays the full relationship hierarchy of all application delivery objects simultaneously. This includes Virtual Servers, their associated Pools, individual Pool Members, applied iRules, profiles, and the health status of each object — all rendered in a single topological screen.

This view is specifically designed for administrators and users who need rapid situational awareness across the data plane without navigating multiple menu screens. Each object is colour-coded to reflect its current availability state (green = available, red = unavailable, yellow = degraded).

The alternative options do not satisfy all requirements:

Local Traffic > Monitors only displays health monitor configurations, not virtual server or pool member relationships.

Statistics provides performance counters and throughput data, not object relationship mapping.

Local Traffic > Virtual Servers lists virtual server configurations individually but does not provide a unified topology view inclusive of pool members and iRules in a single screen.

The Network Map is the authoritative single-pane-of-glass tool for application object visibility on BIG-IP.
