MCPA-Level-1-Maintenance Practice Exam Questions with Answers MuleSoft Certified Platform Architect - Level 1 MAINTENANCE Certification

Explanation

Correct Answer: When the API implementation changes the structure of the request or response messages

*****************************************

>> RAML definition usually needs to be touched only when there are changes in the request/response schemas or in any traits on API.

>> It need not be modified for any internal changes in API implementation like performance tuning, backend system migrations etc..

Explanation

Correct Answer: By refining the response definitions by adding the x-ratelimit-* response headers with description, type, and example

*****************************************

References:

https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers

https://docs.mulesoft.com/api-manage r/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Explanation

Correct Answer: Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model

*****************************************

Key details to note from the given scenario:

>> Power relationship between Order API and Product API is customer/supplier

So, as per below rules of "Power Relationships", the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.

Explanation

Correct Answer: Apply a JSON threat protection policy to all APIs to detect potential threat vectors

*****************************************

>> Usually, if the APIs are designed and developed for specific consumers (known consumers/customers) then we would IP Whitelist the same to ensure that traffic only comes from them.

>> However, as this scenario states that the APIs are publicly available and being used by so many mobile and web applications, it is NOT possible to identify and blacklist all possible bad actors.

>> So, JSON threat protection policy is the best chance to prevent any bad JSON payloads from such bad actors.

Explanation

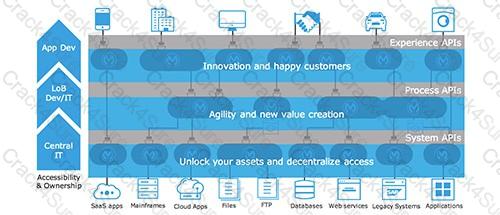

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

https://blogs.mulesoft.com/biz/api/experience-api-ownership/

https://blogs.mulesoft.com/biz/api/process-api-ownership/

https://blogs.mulesoft.com/biz/api/system-api-ownership/

Explanation

Correct Answer: Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs

*****************************************

>> Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.

>> API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.

>> API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.

So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

Explanation

Correct Answer: Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%

*****************************************

The scenario in the question is very clearly stating that the usual traffic in the year is pretty well handled by the existing worker configuration with CPU running well below 70%. The problem occurs only "sometimes" occasionally when there is spike in the number of orders coming in.

So, based on above, We neither need to permanently increase the size of each worker nor need to permanently increase the number of workers. This is unnecessary as other than those "occasional" times the resources are idle and wasted.

We have two options left now. Either to use horizontal Cloudhub autoscaling policy to automatically increase the number of workers or to use vertical Cloudhub autoscaling policy to automatically increase the vCore size of each worker.

Here, we need to take two things into consideration:

1. CPU

2. Order Submission Rate to JMS Queue

>> From CPU perspective, both the options (horizontal and vertical scaling) solves the issue. Both helps to bring down the usage below 90%.

>> However, If we go with Vertical Scaling, then from Order Submission Rate perspective, as the application is still being load balanced with two workers only, there may not be much improvement in the incoming request processing rate and order submission rate to JMS queue. The throughput would be same as before. Only CPU utilization comes down.

>> But, if we go with Horizontal Scaling, it will spawn new workers and adds extra hand to increase the throughput as more workers are being load balanced now. This way we can address both CPU and Order Submission rate.

Hence, Horizontal CloudHub Autoscaling policy is the right and best answer.

Explanation

Correct Answer: A CloudHub worker fails with an out-of-memory exception.

*****************************************

>> An AWS Region itself going down will definitely result in an outage as it does not matter how many workers are assigned to the Mule App as all of those in that region will go down. This is a complete downtime and outage.

>> Extended outage of API manager during initial deployment of API implementation will of course cause issues in proper application startup itself as the API Autodiscovery might fail or API policy templates and polices may not be downloaded to embed at the time of applicaiton startup etc... there are many reasons that could cause issues.

>> A network outage onpremises would of course cause the Order Management System not accessible and it does not matter how many workers are assigned to the app they all will fail and cause outage for sure.

The only option that does NOT result in a service outage is if a cloudhub worker fails with an out-of-memory exception. Even if a worker fails and goes down, there are still other workers to handle the requests and keep the API UP and Running. So, this is the right answer.

Explanation

Correct Answer:

1. Decrease the IT delivery gap

2. Meet various business demands without increasing the IT capacity

3. Make consumption of assets at the rate of production.

*****************************************

Explanation

Correct Answer: Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers

*****************************************

>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.

>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.

>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

Explanation

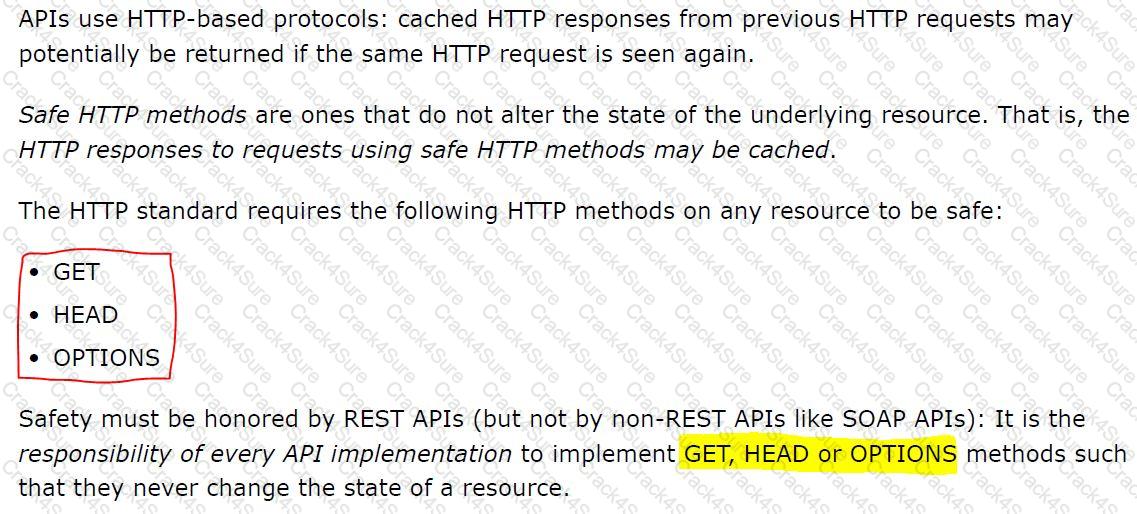

Correct Answer: GET, OPTIONS, HEAD

http://restcookbook.com/HTTP%20Methods/idempotency/

Explanation

Correct Answer: Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API

*****************************************

>> It is not ideal and good approach, until unless there is a pre-approved agreement with the API clients that they will receive a HTTP 3xx temporary redirect status code and they have to implement fallback logic their side to call another API.

>> Creating separate entry of same Order API in API manager would just create an another instance of it on top of same API implementation. So, it does NO GOOD by using clone od same API as a fallback API. Fallback API should be ideally a different API implementation that is not same as primary one.

>> There is NO option currently provided by Anypoint HTTP Connector that allows us to invoke a fallback API when we receive certain HTTP status codes in response.

The only statement TRUE in the given options is to Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API.

Explanation

Correct Answer: Drive consumption as much as production of assets; this enables developers to discover and reuse assets from other projects and encourages standardization

*****************************************

>> The main motto of the new IT Operating Model that MuleSoft recommends and made popular is to change the way that they are delivered from a production model to a production + consumption model, which is done through an API strategy called API-led connectivity.

>> The assets built should also be discoverable and self-serveable for reusablity across LOBs and organization.

>> MuleSoft's IT operating model does not talk about SDLC model (Agile/ Lean etc) or MDM at all. So, options suggesting these are not valid.

References:

https://blogs.mulesoft.com/biz/connectivity/what-is-a-center-for-enablement-c4e/

https://www.mulesoft.com/resources/api/secret-to-managing-it-projects

Correct Answer: Persistent Object Store

*****************************************

>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform

>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform

>> java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub. https://www.baeldung.com/java-weakhashmap

>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub. https://docs.mulesoft.com/object-store/

So, Persistent Object Store is the right answer.

Explanation

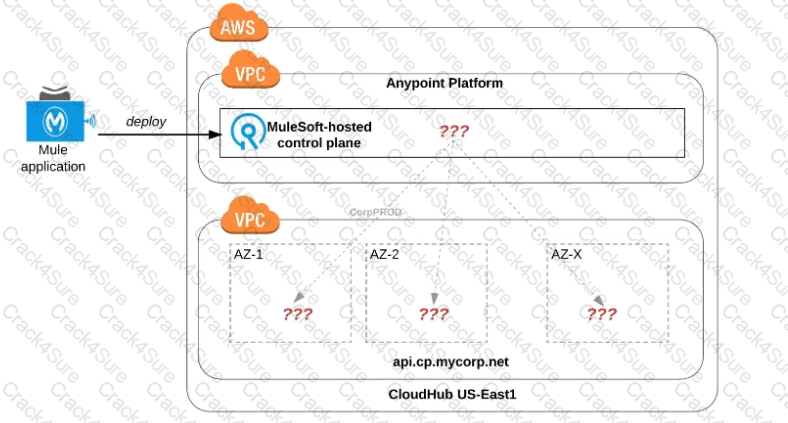

Correct Answer: Workers are randomly distributed across available AZs within that region.

*****************************************

>> Currently, we only have control to choose which AWS Region to choose but there is no control at all using any configurations or deployment options to decide what Availability Zone (AZ) to assign to what worker.

>> There are NO fixed or implicit rules on platform too w.r.t assignment of AZ to workers based on environment or application.

>> They are completely assigned in random. However, cloudhub definitely ensures that HA is achieved by assigning the workers to more than on AZ so that all workers are not assigned to same AZ for same application.

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Explanation

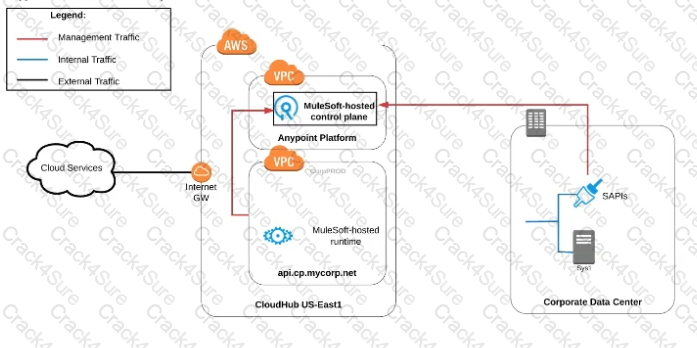

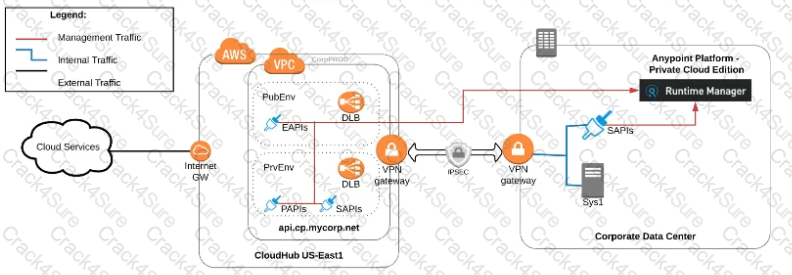

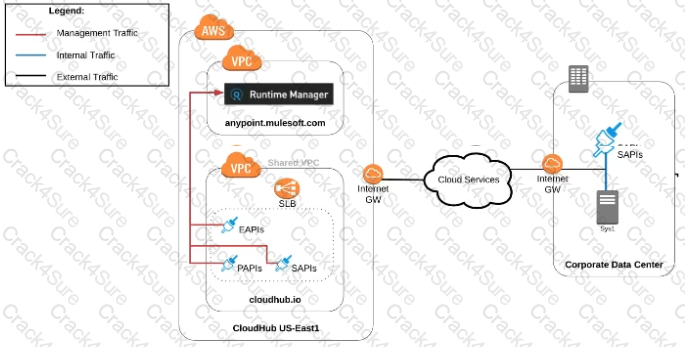

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.
