Practice Free NS0-194 NetApp Certified Support Engineer (NCSE) Exam Questions Answers With Explanation

The NetApp Deployment Engine for NetApp HCI requires a minimum of two compute nodes. NetApp HCI is built around independent compute and storage resources, and the deployment engine validates the minimum configuration before allowing an installation workflow to proceed. One compute node is not sufficient because the platform is designed to provide a resilient hypervisor environment and to separate compute lifecycle operations from storage resource provisioning. Three or four compute nodes may be common in larger deployments, but they are not the minimum requirement for the deployment engine. The exam wording asks for compute nodes, not total nodes in the HCI environment, so the answer must focus only on the compute-node requirement. The support engineer should distinguish this from the storage-node minimum and from general vSphere cluster sizing. References/topics: NetApp HCI deployment prerequisites, NetApp Deployment Engine validation, minimum compute-node requirements, and HCI installation planning.

Different IPspaces are required when tenants must use separate network environments for data service and SnapMirror protection. An IPspace creates an independent network routing domain in ONTAP, allowing overlapping or isolated network configurations for different tenants. VLANs can segment traffic inside a network design, but they do not provide the same independent routing-domain separation that multi-tenancy requires in this scenario. A shared network infrastructure is not required when ONTAP is configured for tenant isolation. The idea that each node can communicate with only one tenant is incorrect because ONTAP nodes can host LIFs in multiple IPspaces, subject to proper design. The support engineer should choose IPspaces whenever the requirement is true tenant network separation, independent routing, or duplicate address support. That separation is especially important when tenants require independent routing tables, separate LIF placement, or overlapping address plans. References/topics: ONTAP IPspaces, multi-tenancy, SVM network isolation, SnapMirror tenant separation, and routing-domain design.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

The QoS latency output indicates the problem is associated with the HA interconnect/NVRAM mirroring path rather than ordinary disk latency. In ONTAP HA pairs, writes are protected by logging them locally and mirroring the write log to the partner. If the HA interconnect path is impaired, write acknowledgement latency can rise even when front-end network latency and disk latency do not dominate the workload. Increasing SMB read sizes would not address the observed write-path protection delay. Replacing NVRAM is too aggressive without evidence of a failed NVRAM device, and a disk bottleneck would show disk latency as the dominant center. The support engineer should interpret the QoS columns as latency centers and then correlate them with HA architecture. When NVRAM-related latency is elevated in an HA pair, HA interconnect health, cabling, ports, and partner connectivity must be reviewed before assuming a media or protocol issue. References/topics: ONTAP QoS latency centers, HA interconnect, NVRAM mirroring, SMB workload troubleshooting, and write-path latency analysis.

NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

ONTAP NVRAM stores uncommitted writes and is protected by battery or nonvolatile backup mechanisms, depending on platform generation. It is not a read cache; read caching is handled by buffer cache and, on some platforms, flash-based caching technologies. It is also not correctly described as a user-visible write cache in the simple sense, because WAFL uses NVRAM/NVLog as a protected log for writes that have been acknowledged to clients but not yet committed to disk through a consistency point. This distinction is important in support scenarios: NVRAM protects write consistency, enables fast acknowledgement, and supports recovery after interruption. The battery-backed/nonvolatile characteristic is critical because acknowledged writes must survive power loss or controller failure. A support engineer should connect NVRAM symptoms to write latency, HA mirroring, consistency point behavior, and recovery guarantees. References/topics: ONTAP NVRAM/NVLog, consistency points, write protection, HA mirroring, and nonvolatile write logging.

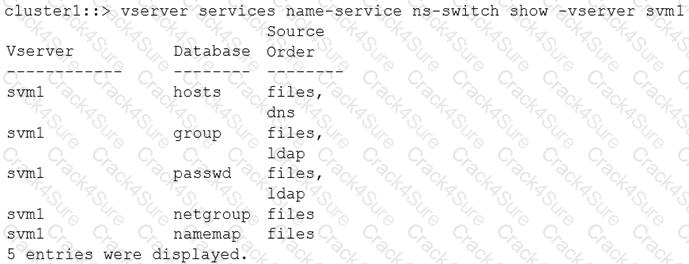

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

SVM disaster recovery is the appropriate NetApp technology because the requirement includes replicating selected volumes and the SVM network configuration to another data center. SnapMirror Synchronous protects individual volumes synchronously but does not replicate the broader SVM configuration as the scenario requires. MetroCluster provides site-level high availability and disaster recovery but is not the selected technology for replicating a subset of volumes plus SVM configuration to another site. SVM peering is only a prerequisite relationship that allows replication; it is not the replication and recovery solution by itself. SVM DR uses SnapMirror to replicate SVM configuration and data so that the destination SVM can be activated during a disaster. Support engineers should recognize phrases such as network configuration, SVM identity, and multiple volumes as indicators of SVM DR rather than single-volume SnapMirror. References/topics: SVM disaster recovery, SnapMirror SVM replication, network configuration replication, DR activation, and multi-volume data protection.

The correct conclusion is that the CIFS SVM is not using DNS. A hardened Windows group policy commonly reduces insecure name resolution and authentication fallback behavior. SMB access to a CIFS server should use proper DNS name resolution so that clients can locate the server, validate identity, and use Kerberos or the intended domain authentication path. If users previously connected through weak or non-DNS mechanisms, a new security policy can break access even though the SVM itself is still online. SMBv1/SMBv2 configuration is not the best answer because the scenario points to a domain security policy change rather than protocol version negotiation alone. NFSv3 is irrelevant to Windows CIFS access, and a wrong domain would not normally appear suddenly after a group policy push if access worked the day before. References/topics: ONTAP SMB access, DNS dependency, Kerberos authentication, Windows security policy effects, and CIFS client troubleshooting.

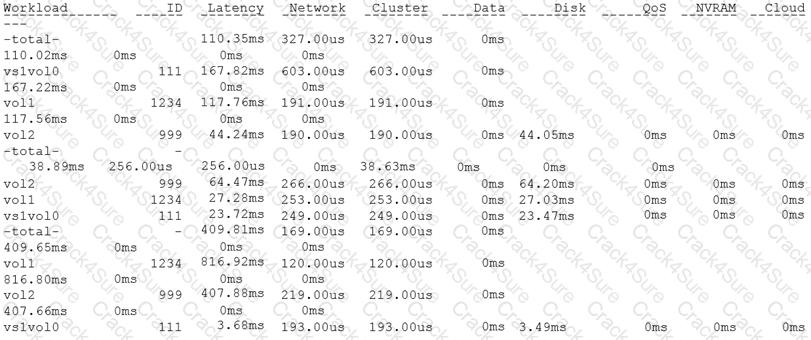

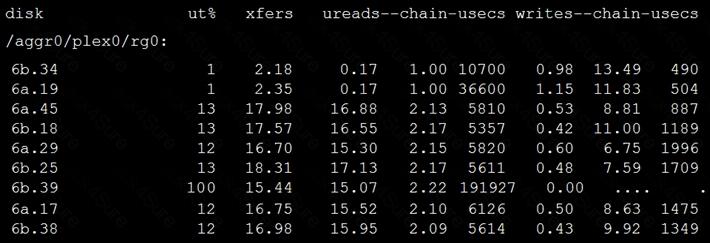

The exhibit is a performance breakdown that separates latency by subsystem, including network, cluster, data, disk, QoS, NVRAM, and cloud columns. When disk latency appears in the path and the workload view indicates delay associated with storage media access, the disk layer must be examined. In systems that use external shelves, SAS connectivity is the transport path between controller and disks, so the SAS adapter is also a logical component to investigate. Cluster switches and network interface cards would be primary suspects if network or cluster latency dominated the output, but the relevant symptom in this type of support workflow points toward back-end storage access rather than client or cluster front-end connectivity. A support engineer should correlate the QoS latency center with physical topology: high disk latency can be caused by a failing disk, shelf pathing, SAS adapter, cable, or shelf module. Therefore, the two strongest components to examine are the SAS adapter and disk. References/topics: ONTAP QoS latency centers, disk latency troubleshooting, SAS path analysis, and storage back-end diagnostics.

MPIO and ALUA are the required host/target features to ensure storage failover works correctly for FCP and iSCSI clients. MPIO on the host provides multiple available paths to the LUN, allowing I/O to continue when one path or controller is unavailable. ALUA on the target communicates path states to the host so that optimized paths are preferred and non-optimized paths are used correctly during failover. LACP is a link aggregation mechanism for Ethernet networking and does not solve block SAN path selection for FCP; it is also not relevant to FC. SCSI is the command protocol foundation for FCP and iSCSI, but it is not a failover feature by itself. The support engineer must validate the complete SAN failover stack: host multipathing software, correct DSM/device handler, ONTAP ALUA reporting, igroup configuration, and redundant LIF/target paths. References/topics: ONTAP SAN failover, MPIO, ALUA, FCP/iSCSI host access, and TR-4080 SAN best practices.

Compression, compaction, and thin provisioning are ONTAP storage efficiency techniques. Compression reduces the physical space consumed by compressible data blocks. Compaction packs small I/O writes more efficiently into storage blocks to reduce wasted space, especially on AFF systems. Thin provisioning presents logical capacity to clients without reserving all physical capacity up front, allowing storage to be consumed as data is actually written. Encryption protects data confidentiality but is not a capacity-saving technology. Advanced Drive Partitioning improves disk utilization by partitioning drives for root and data usage, but it is a platform layout mechanism rather than the standard ONTAP data-reduction efficiency listed with compression and compaction. The NCSE interpretation must distinguish capacity efficiency from security and hardware layout features. The three selected options are the technologies that reduce or optimize consumed capacity at the volume or aggregate layer. References/topics: ONTAP storage efficiencies, inline compression, data compaction, thin provisioning, AFF efficiency defaults, and capacity management.
