2V0-51.23 Practice Exam Questions with Answers VMware Horizon 8.x Professional Certification

The VMware Horizon component that needs to be deployed to allow users to log into VMware Workspace ONE Access and connect to remote desktops and applications without having to provide Active Directory credentials is the Enrollment Server. The Enrollment Server is a standalone service that integrates with VMware Workspace ONE Access and enables True Single Sign-On (SSO) for Horizon clients that are using non-AD-based authentication methods such as RSA SecureID, RADIUS, or SAML1. The Enrollment Server requests short-lived certificates on behalf of the users from a certificate authority (CA), and these certificates are used for authentication to the Horizon environment2. The Enrollment Server must be installed and configured in the same domain or forest as the Connection Server, and it must have an enrollment agent certificate that authorizes it to act as an enrollment agent2.

The other options are not valid or feasible because:

• A Replica Server is a Connection Server instance that replicates the Horizon LDAP configuration data from another Connection Server instance, and provides high availability and load balancing for user connections3. A Replica Server does not request or issue certificates for users, and it does not integrate with VMware Workspace ONE Access.
• A Security Server is a Connection Server instance that resides within a DMZ and acts as a proxy for external user connections to the Horizon environment4. A Security Server does not request or issue certificates for users, and it does not integrate with VMware Workspace ONE Access. Security Servers are deprecated in Horizon 8 and replaced by Unified Access Gateways (UAGs)4.
• A vCenter Server is a management platform that provides centralized control and visibility of vSphere hosts and virtual machines in the Horizon environment5. A vCenter Server does not request or issue certificates for users, and it does not integrate with VMware Workspace ONE Access.

References:

• VMware Horizon 8.x Professional by Vmware1
• Install and Set Up an Enrollment Server2
• Install a Replica Connection Server Instance3
• Install a Security Server4
• vCenter Server Overview5

For instant-clone operations in Active Directory, the user account used by VMware Horizon needs specific permissions to manage computer objects effectively. These include the ability to create and delete child objects and computer objects, as well as read and write all properties of those objects. These permissions ensure that Horizon can create, modify, and clean up computer accounts associated with instant clones, facilitating seamless desktop provisioning and management.

C:\Users\Waqas Shahid\Desktop\Mudassir\Untitled.jpg

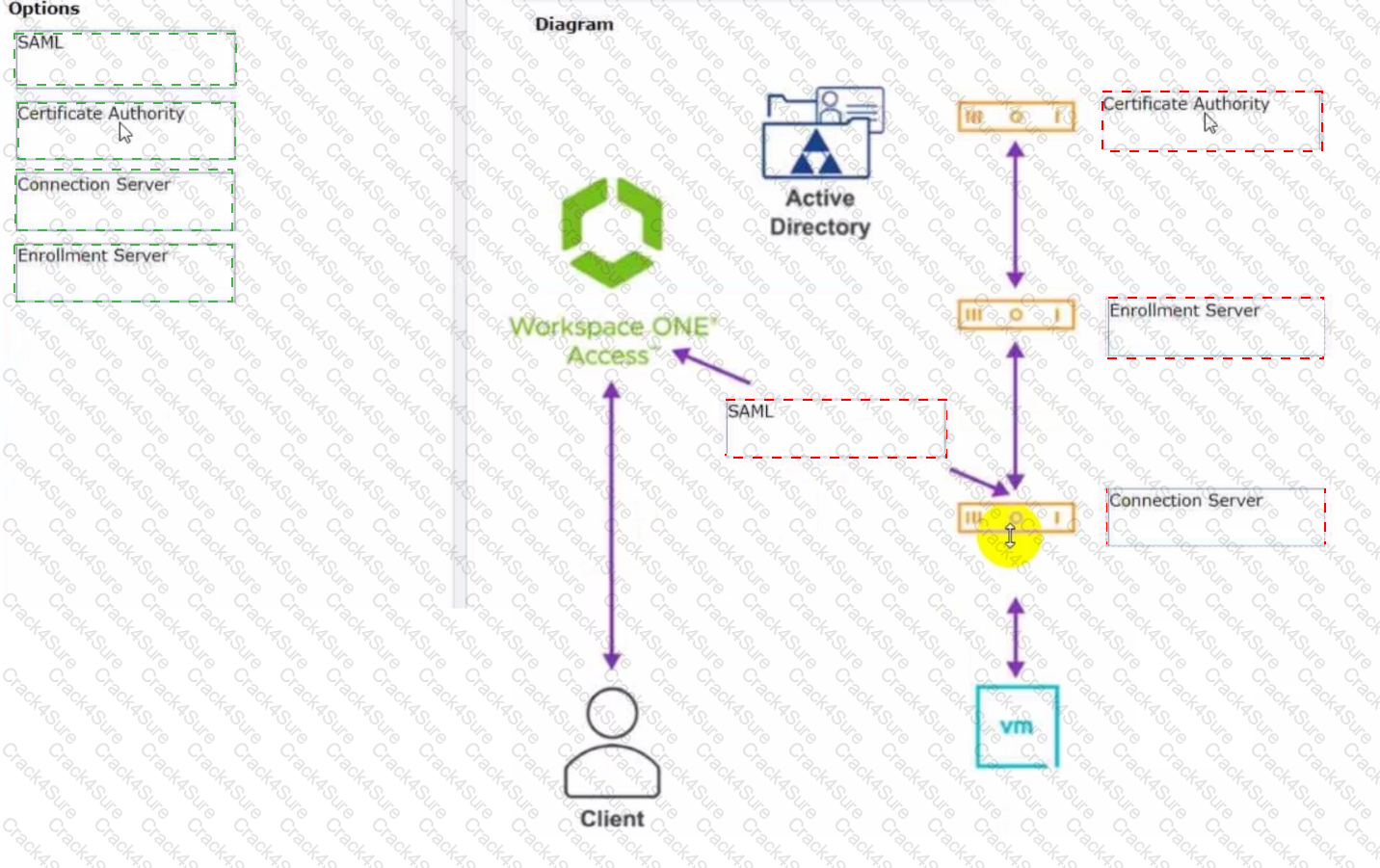

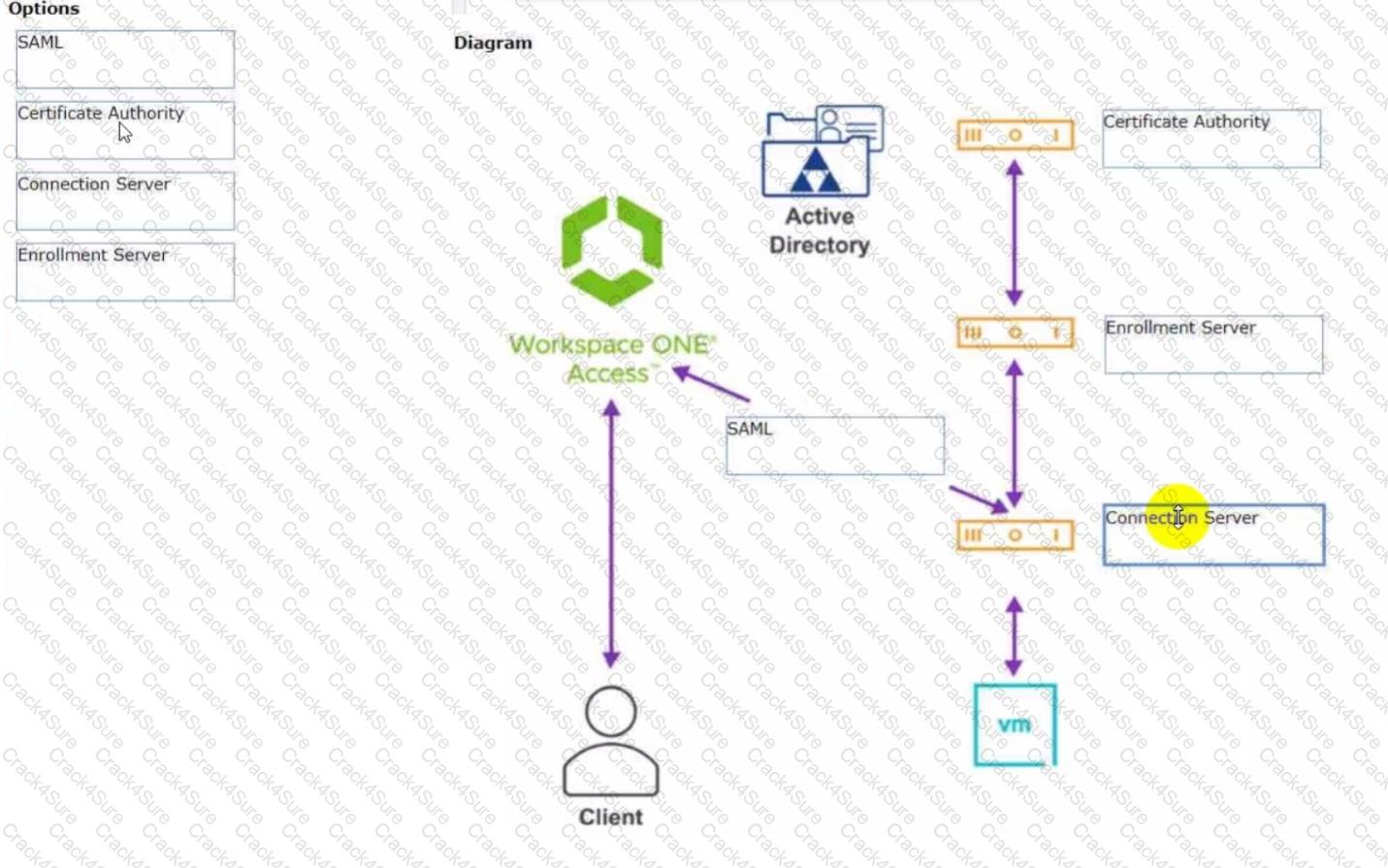

• SAML -> Connects the client to Workspace ONE Access
• Certificate Authority -> Issues certificates for vrm and Enrollment Server
• Connection Server -> Connects vrm to Active Directory
• Enrollment Server -> Connects Workspace ONE Access to vrm

You can find more information about the Simple True 5SO Architecture in the VMware Horizon 8.x Professional source documents or study guide1. This architecture is a simplified version of the True SSO Architecture, which allows users to log in to their virtual desktops and applications without entering credentials multiple times. The Simple True 5SO Architecture uses Workspace ONE Access as the identity provider, which authenticates users with SAML and issues SAML assertions. The Enrollment Server then uses the SAML assertions to request short-lived certificates from the Certificate Authority, which are used to authenticate users to the Connection Server. The Connection Server then connects users to their virtual desktops and applications through vrm, which is integrated with Active Directory2.

References:

• VMware Horizon 8.x Professional
• Simple True SSO Architecture

Integrating a Linux OS-based desktop into Active Directory can be achieved using Winbind for domain joining and authentication, Windows Domain Join through tools like Samba, and System Security Services Daemon (SSSD) for LDAP authentication against Active Directory. These methods enable Linux desktops to participate in a Windows-centric environment, allowing for centralized authentication and management.

A screenshot of a computer program Description automatically generated

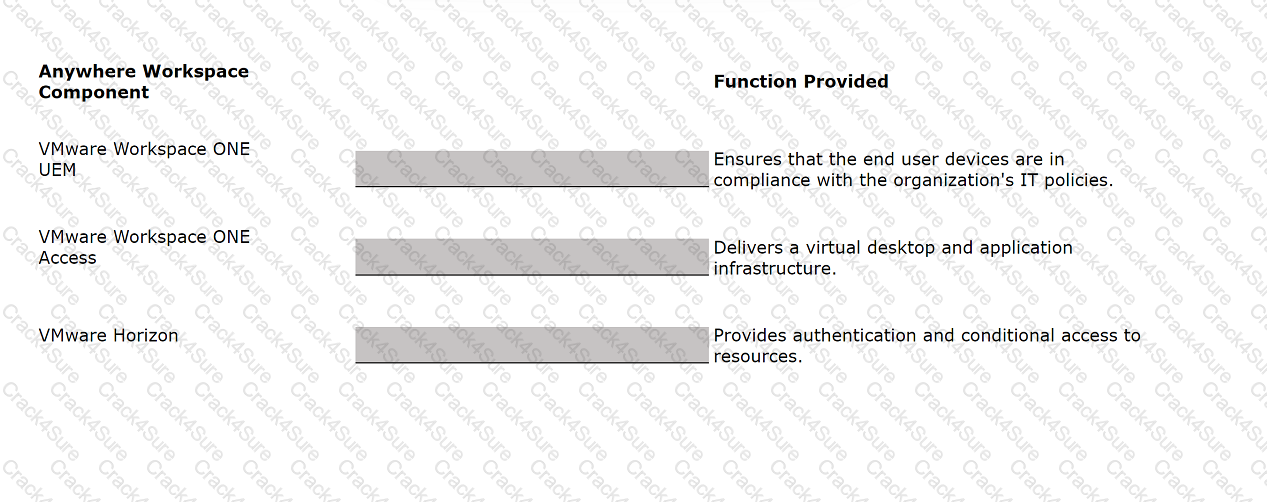

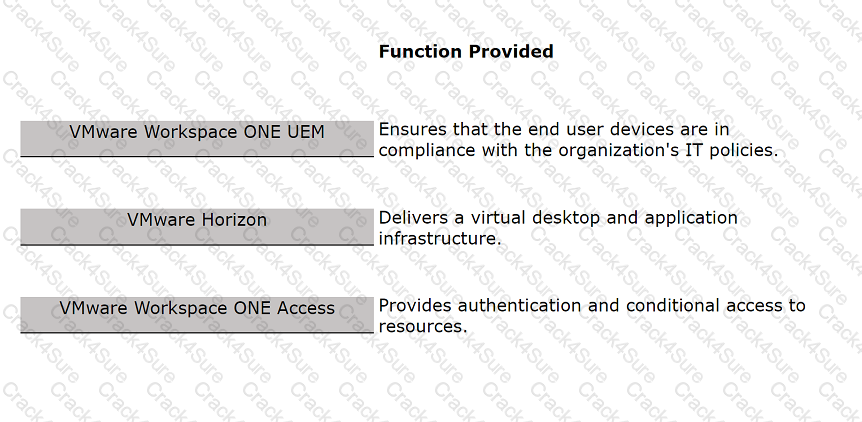

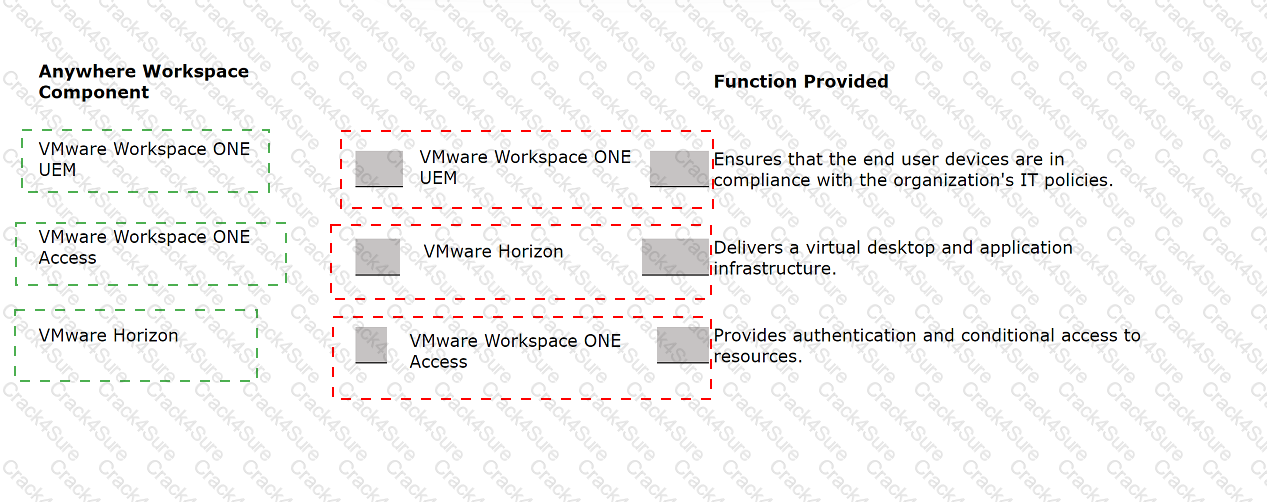

VMware Horizon is designed to deliver a virtual desktop and application infrastructure, providing IT with a modern, streamlined approach to deliver, protect, and manage Windows and Linux virtual desktops and applications while containing costs and ensuring that end users can work anytime, anywhere, on any device. Horizon 8 supports flexible hybrid and multi-cloud deployment options and offers an optimized experience with unified communication and collaboration tools. The VMware Blast Extreme Protocol, included with Horizon 8, is a dynamic display protocol that delivers an immersive, feature-rich user experience across devices, locations, media, and network connections??.

VMware Workspace ONE UEM (Unified Endpoint Management) is crucial for ensuring that end-user devices comply with an organization's IT policies. It manages and secures endpoints like smartphones, tablets, laptops, and desktops, streamlining operational tasks for IT while ensuring corporate data security.

VMware Workspace ONE Access facilitates secure and simplified access to enterprise applications, providing single sign-on capabilities and conditional access based on user authentication. This ensures that users can access the resources they need efficiently while maintaining the security of the organization's data and applications.

References:

• For more information on VMware Horizon 8 and its capabilities, you can refer to VMware's official documentation and resources available at techzone.vmware.com, which provides a comprehensive overview of Horizon 8, including its architecture, components, and deployment scenarios??????.
• Detailed insights into VMware Workspace ONE UEM and Workspace ONE Access can be found within VMware's product documentation and techzone resources, which offer guidance on implementing and managing these solutions as part of the Anywhere Workspace ecosystem??.

C:\Users\Waqas Shahid\Desktop\Mudassir\Untitled.jpg

One of the prerequisites for installing the Horizon Connection Server is to use a domain user account with administrator privileges on the system. This is because the installer needs to access and modify certain system files and registry settings, as well as create and configure the VMware Horizon View services. The installer also authorizes an Administrators account that has full administration rights for the Horizon environment, including the right to install replicated Connection Server instances. The other options are not prerequisites for installing the Horizon Connection Server. The host system can be a physical or virtual machine, but it must have an IP address that does not change. An SSL server certificate is not required for the initial installation, but it is recommended to replace the default self-signed certificate with a valid certificate from a trusted CA after the installation. AD DS and AD LDS Tools are not required for installing the Horizon Connection Server, but they can be useful for troubleshooting and managing the ADAM database that stores the Horizon configuration data. References: Installation Prerequisites for Horizon Connection Server and [VMware Horizon 8.x Professional Course]

Cloud Pod Architecture is a feature that allows administrators to link multiple Horizon pods across sites and data centers to form a single logical entity called a pod federation. Cloud Pod Architecture enables global entitlements, which allow users to access desktops and applications from any pod in the pod federation. Cloud Pod Architecture also provides load balancing, high availability, and disaster recovery capabilities for Horizon deployments.

However, Cloud Pod Architecture has some feature limitations that administrators should be aware of. Two of these limitations are:

• Cloud Pod Architecture does not support Active Directory two-way trusts between domains: This means that the domains that contain the Horizon pods in the pod federation must have a one-way trust relationship, where the domain that contains the Cloud Pod Architecture home site trusts all the other domains, but not vice versa. A two-way trust relationship, where each domain trusts and is trusted by all the other domains, is not supported by Cloud Pod Architecture and can cause authentication and entitlement issues.
• Kiosk mode clients are not supported unless a workaround has been implemented: This means that users who log in to Horizon Client in kiosk mode, which is a mode that allows users to access a single desktop or application without entering credentials, cannot access desktops or applications from a Cloud Pod Architecture implementation. Kiosk mode clients are not compatible with global entitlements and load balancing features of Cloud Pod Architecture. However, there is a workaround that involves creating a dedicated user account and a dedicated desktop pool for each kiosk mode client and using a script to launch Horizon Client with the appropriate parameters. For instructions, see VMware Knowledge Base (KB) article 21488881.

The other options are not limitations of Cloud Pod Architecture:

• Cloud Pod Architecture is supported with Unified Access Gateway appliances: Unified Access Gateway is a platform that provides secure edge services for Horizon deployments, such as secure remote access, load balancing, and authentication. Unified Access Gateway is compatible with Cloud Pod Architecture and can be configured to route user requests to the appropriate pod in the pod federation based on global entitlements and load balancing policies.
• Cloud Pod Architecture can span multiple sites and data centers simultaneously: This is one of the main benefits of Cloud Pod Architecture, as it allows administrators to scale up and out their Horizon deployments across different geographic locations and network boundaries. Cloud Pod Architecture can support up to 15 pods per pod federation and up to 5 sites per pod federation, with a maximum of 200,000 sessions per pod federation.
• The Cloud Pod Architecture feature is supported in an IPv6 environment: IPv6 is the latest version of the Internet Protocol that provides a larger address space and enhanced security features for network communication. Cloud Pod Architecture supports IPv6 environments and can operate in mixed IPv4 and IPv6 environments as well.

References: Cloud Pod Architecture Limitations in Horizon 8 and [VMware Horizon 8.x Professional Course]

The default URL used to access the Horizon Console is https:// /admin, where is the fully qualified domain name of the Connection Server instance. This URL allows you to log in to Horizon Console by using a secure (TLS) connection. You can also use the IP address of the Connection Server instance instead of the FQDN, but this might result in blocked access or reduced security due to certificate mismatch. You cannot use https://localhost to connect from the Connection Server host, but you can use https://127.0.0.1 instead. The other options are not valid URLs for Horizon Console.  References: Log In to Horizon Console

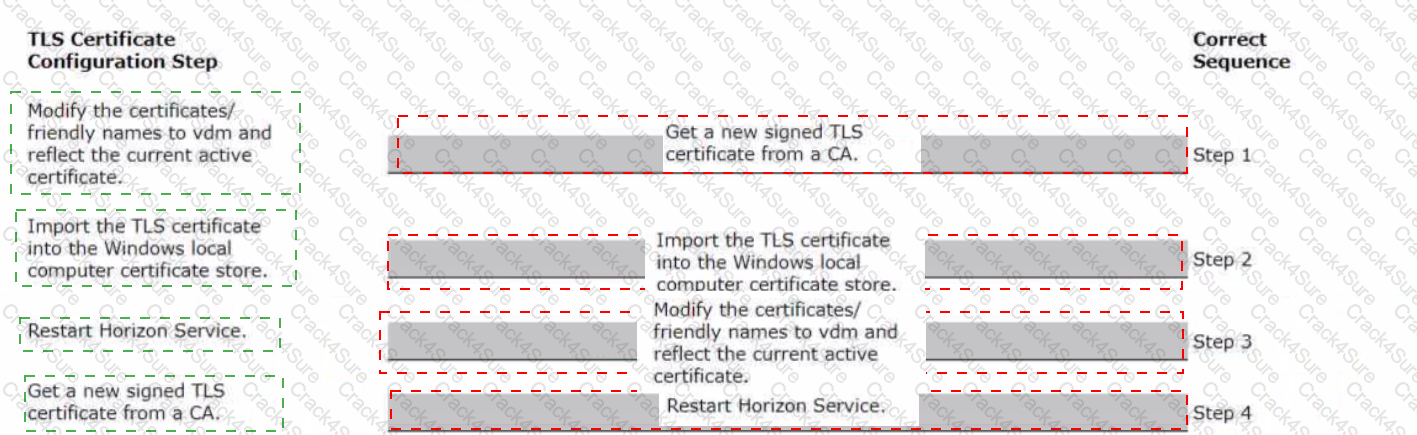

To correctly sequence the TLS Certificate Configuration Steps:

• Get a new signed TLS certificate from a CA. Before making any modifications or importing the certificate, you'll first need to obtain a new signed TLS certificate from a Certificate Authority (CA). So, this should be Step 1.
• Import the TLS certificate into the Windows local computer certificate store. After obtaining the new signed TLS certificate, the next logical step is to import this certificate into the Windows local computer certificate store. This would be Step 2.
• Modify the certificates/ friendly names to vdm and reflect the current active certificate. Once the certificate is imported, the next step is to modify its friendly names to ensure the Horizon Service recognizes and uses this certificate. This becomes Step 3.
• Restart Horizon Service. Finally, after all the modifications and configurations are done, you should restart the Horizon Service to apply the changes. This is Step 4.

In summary:

App Volumes is a real-time application delivery system that allows administrators to assign applications to users and groups in Horizon. App Volumes uses virtual disks called packages to store and deliver applications. When a user logs on to a desktop, the App Volumes agent attaches the assigned packages to the desktop and merges them with the OS disk. The user can then access the applications as if they were natively installed.

In this scenario, Adobe Acrobat 11 has been assigned to a user as an App Volumes package. When the user logs on to VM25, which already has Adobe Acrobat 11 natively installed, the App Volumes agent attaches the package to VM25 and creates a shortcut on the user desktop. However, the package does not overwrite or conflict with the natively installed application. Instead, when the user clicks on the shortcut, the App Volumes package for Adobe Acrobat 11 is opened and runs in an isolated environment. This allows the user to use different versions of the same application without affecting each other or the OS. References: App Volumes Architecture and [VMware Horizon 8.x Professional Course]

Collaboration is a feature that allows users to invite other users to join an existing Windows or Linux remote desktop session with both screen sharing and audio out features enabled. A remote desktop session that is shared in this way is called a collaborative session. The user that shares a session with another user is called the session owner, and the user that joins a shared session is called a session collaborator. A Horizon administrator must enable the Session Collaboration feature for the desktop pool or farm that contains the remote desktops that support collaboration.

One of the requirements to enable Session Collaboration is to use the VMware Blast display protocol for the remote desktops. VMware Blast is a protocol that provides high-performance, high-quality graphics and multimedia delivery over LAN or WAN networks. VMware Blast supports Session Collaboration by allowing multiple users to view and interact with the same remote desktop session simultaneously. Other display protocols, such as PCoIP or RDP, do not support Session Collaboration and will not allow users to share or join collaborative sessions.

Therefore, to enable Session Collaboration in the VMware Horizon environment, the administrator needs to use the BLAST protocol as a requirement. References: Configuring Session Collaboration, Sharing Remote Desktop Sessions, and [VMware Horizon 8.x Professional Course]

When configuring a virtual machine to use an NVIDIA graphics card, issues such as the VM not starting can occur if there is no suitable host available that meets the requirements for 3D graphics, or if not all memory required by the 3D graphics card has been reserved for the VM. Ensuring that the host has the necessary 3D graphics capabilities and that the VM is configured with reserved memory can resolve these issues.

VMware Dynamic Environment Manager Application Profiler is a standalone application that simplifies the creation of Flex configuration files and predefined settings for use with VMware Dynamic Environment Manager. Application Profiler analyzes where an application stores its file and registry configuration. The analysis results in an optimized Flex configuration file, which you can edit in the Application Profiler or use directly in the VMware Dynamic Environment Manager environment. With Application Profiler, you can also create application-specific predefined settings, with which you can set the initial configuration state of applications. Save the Flex configuration file with predefined settings to export the current application configuration state1.

Therefore, the two capabilities that are supported by VMware Dynamic Environment Manager Application Profiler are:

• It allows creation of application-specific predefined settings. This means that you can configure the default settings for an application that will be applied when a user launches it for the first time. For example, you can set the language, theme, or preferences of an application using Application Profiler2.
• It analyzes registry and file system location settings for an application. This means that it monitors the changes that an application makes to the registry and file system when it is running, and generates a Flex configuration file that captures those changes. This allows VMware Dynamic Environment Manager to manage the user personalization of those settings across different devices and sessions3.

The other options are not supported by VMware Dynamic Environment Manager Application Profiler:

• It allows individual user personalization of applications. This is not a capability of Application Profiler, but rather of VMware Dynamic Environment Manager itself. Application Profiler only helps to create the Flex configuration files that enable user personalization, but it does not apply them to individual users4.
• It allows third-party user personalization of applications. This is also not a capability of Application Profiler, but rather of VMware Dynamic Environment Manager itself. Application Profiler only works with applications that store their settings in the registry or file system, and does not support third-party user personalization solutions such as AppSense or RES.
• It allows creation of computer templates. This is not a capability of Application Profiler at all. Computer templates are used to create virtual machines or physical computers with a predefined configuration, and are not related to application management or user personalization.

References:

• Introduction to VMware Dynamic Environment Manager Application Profiler
• Editing a Profile Archive
• Profile an Application
• Introduction to VMware Dynamic Environment Manager
• [VMware Dynamic Environment Manager FAQ]
• [Create a Computer Template]

Enabling Quiesce Mode in the Unified Access Gateway (UAG) Admin UI is the recommended approach for minimizing downtime during maintenance or upgrades when the UAG is part of a load-balanced cluster. Quiesce Mode allows the UAG to stop accepting new connections while allowing existing sessions to continue until they naturally end. This ensures minimal disruption to users and allows for a controlled upgrade process.

A black screen when connecting to a Horizon virtual desktop can be caused by various reasons, such as network issues, hardware issues, Horizon tunnel issues, or underlying guest operating system issues. Based on the options given, the following could be the cause of the issue:

• A vRAM shortage on the Horizon virtual machine. This can affect the display performance and cause a black screen or a disconnect. To resolve this issue, you should configure the pool to provide enough video memory for the resolutions you plan to present to the clients1.
• The incorrect video driver version installed on the Horizon virtual machine. This can cause compatibility issues and prevent the display protocol from working properly. To resolve this issue, you should verify that the View desktop is using the correct video driver and that it is compatible with the VMware Tools and Horizon Agent versions installed23.
• An incorrect firewall configuration. This can block or misroute the display protocol traffic and cause a connection failure. To resolve this issue, you should verify that the required ports are open between the client, UAG/Security server/Connection server, and VDI machine4 .

The other options are not likely to cause a black screen when connecting to a Horizon virtual desktop:

• The client machine video memory is too high. This should not affect the display protocol performance or cause a black screen. The client machine video memory is only used to render the display on the local device, not on the remote desktop.
• The Horizon virtual machine video memory is too high. This should not cause a black screen or a disconnect either. The Horizon virtual machine video memory is used to allocate resources for the display protocol on the server side, not on the client side.

References:

• Dual monitors configured using PCoIP does not span both the monitors for VMware View and Connecting to a VDI desktop with PCoIP displays a black screen and disconnects after 10 seconds
• Error attaching to SVGADevTap, error 4000: EscapeFailed reported by PCoIP server
• Interoperability Matrices
• Configuring PCoIP Secure Gateway in VMware View
• [Network Ports in VMware Horizon]

To enable a virtual machine to power on with a PCI graphics accelerator, such as a GPU, attached to it, the administrator needs to reserve all guest memory for that virtual machine. This is because PCI devices require direct memory access (DMA) to function properly, and memory overcommitment can interfere with DMA operations. Reserving all guest memory ensures that no memory swapping or ballooning occurs on the virtual machine, and that the memory address space is contiguous and available for DMA56.

The other options are not required or valid because:

• Enabling Video Card 3D Graphics is not necessary for using a PCI graphics accelerator. This option is for using software-accelerated graphics or virtual shared graphics acceleration (vSGA) on a virtual machine7.
• Setting Memory Shares to High does not guarantee that all guest memory will be reserved. Memory shares only affect how memory resources are distributed among competing virtual machines when there is memory contention on the host. Memory shares do not prevent memory overcommitment or swapping.
• Disabling CPU Hot Plug does not affect the use of a PCI graphics accelerator. CPU Hot Plug allows adding or removing virtual CPUs from a powered-on virtual machine. It has no relation to PCI devices or DMA operations.

References := 5: VMware vSphere 7 Documentation: Add a PCI Device to a Virtual Machine 6: VMware Knowledge Base: Enabling DirectPath I/O causes virtual machines to fail to power on (1010789) 7: VMware Workstation Pro Documentation: Prepare a Virtual Machine to Use Accelerated 3D Graphics : VMware vSphere Resource Management Documentation: Memory Resource Management : VMware vSphere Virtual Machine Administration Documentation: Hot Add Memory and CPU Resources

The issue described indicates that the Horizon Connection Server is incorrectly handling traffic that should be directed to the Unified Access Gateway (UAG) and then to the VDI desktops. Disabling the Tunnel and Gateways settings on the Horizon Connection Server forces the UAG to handle the Blast traffic directly, ensuring that the connections are made to the VDI desktops' IP addresses, thus resolving the black screen and disconnection issue.

Load balancing is a feature that allows administrators to distribute the load of published desktop and application sessions across multiple RDS hosts in a farm. Load balancing can improve the performance and availability of the sessions and the hosts. Horizon offers two ways of configuring load balancing for RDS hosts: using load balancing settings in Horizon Console or using custom load balancing scripts.

The load balancing settings in Horizon Console allow administrators to define how Horizon calculates the server load index, which indicates the load on each RDS host. The server load index can range from 0 to 100, where 0 represents no load and 100 represents full load. A server load index of -1 indicates that load balancing is disabled. Horizon uses the server load index to determine which RDS host is the best candidate for placing a new session request.

The load balancing settings in Horizon Console include the following check boxes that can be selected to influence the load balancing behavior:

• The use custom script setting for customized RDSH load balancing: This setting allows administrators to override the default behavior of the load balancing settings and control the placement of new sessions by writing and configuring custom load balancing scripts. The custom scripts must write the server load index to a specific registry key on each RDS host. Horizon will use the value from the registry key instead of calculating it from the other settings.
• The Include Session Count setting to include the session count on the RDSH for load balancing: This setting allows administrators to include the number of sessions (connected, pending, and disconnected) on each RDS host as a factor in calculating the server load index. By default, Horizon uses the following formula to calculate the server load index based on the session count: (connected sessions + pending sessions + disconnected sessions)/ (maximum session count). If the maximum session count is configured as unlimited, Horizon falls back to using the absolute number of total sessions.

The other options are not check boxes that can be selected in the load balancing settings in Horizon Console:

• The floating dynamic host profile setting, created in the vSphere profile section: This option is not related to load balancing for RDS hosts, but rather to dynamic environment manager for instant-clone desktops. A dynamic host profile is a vSphere profile that contains configuration settings for instant-clone desktops, such as network settings, domain join settings, and customization scripts. A floating dynamic host profile is a type of dynamic host profile that applies to floating desktop pools, where users are assigned a random desktop from a pool at each login.
• The Horizon DRS setting for fully automated vSphere load balancing: This option is not related to load balancing for RDS hosts, but rather to distributed resource scheduler (DRS) for vSphere clusters. DRS is a feature that monitors and balances the CPU and memory resources across multiple ESXi hosts in a cluster. DRS can also migrate virtual machines between hosts using vMotion to optimize resource utilization and performance. Horizon DRS is an extension of DRS that integrates with Horizon and provides additional capabilities, such as affinity rules, maintenance mode, and power management. Horizon DRS can be configured with different automation levels, such as fully automated, partially automated, or manual.

References: Configuring Load Balancing for RDS Hosts in Horizon Console, Load Balancing Settings, Load Balancing Scripts, [Dynamic Host Profiles], and [VMware Horizon 8.x Professional Course]
