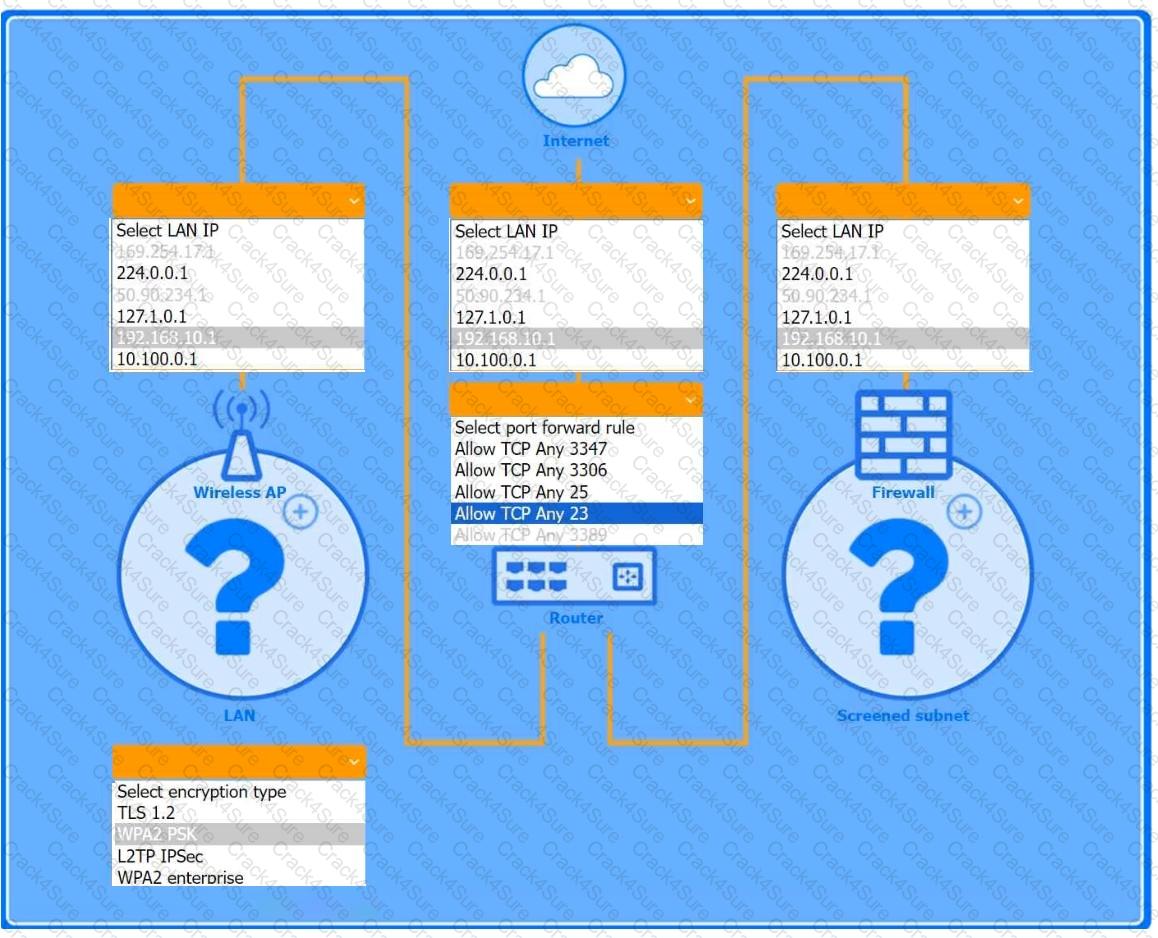

The completed configuration:

1. Wireless AP (LAN side)

1. LAN IP: 192.168.10.1

2. Encryption: WPA2 PSK

2. Router (port-forward rule)

1. Allow TCP Any 3389

This forwards inbound RDP traffic (TCP/3389) from the Internet to the Windows PC, enabling Remote Desktop access.

3. Firewall (screened subnet side)

1. LAN IP: 10.100.0.1

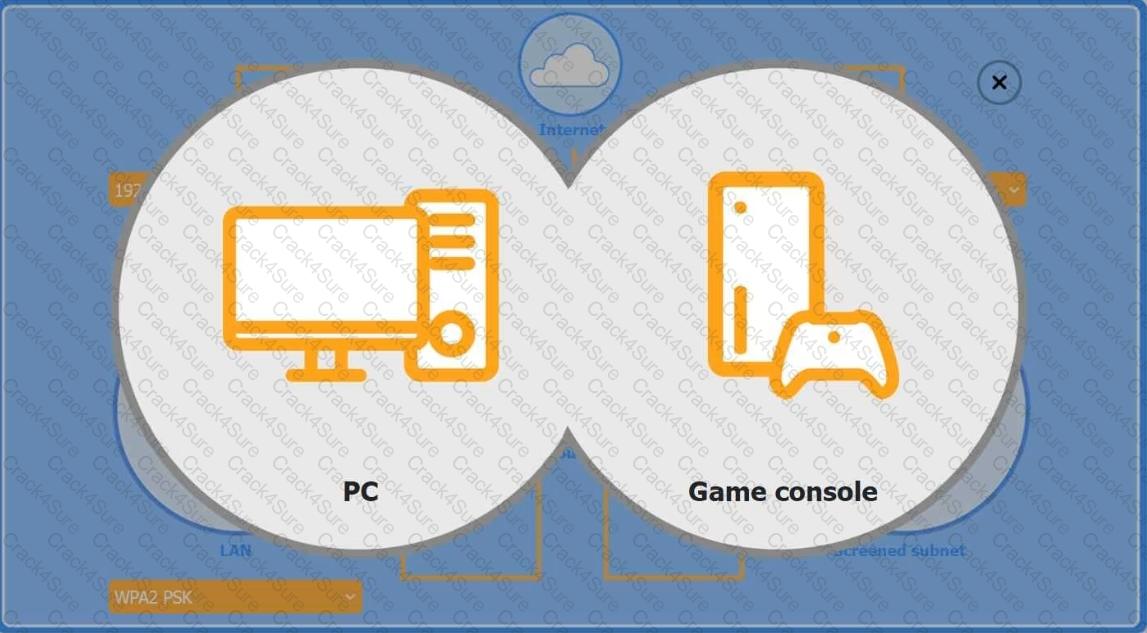

4. Device placement

1. PC: place behind the router (where the port-forward rule points).

2. Game console: place on the Wireless AP (so it can use chat and extra services over WPA2 PSK).

3. Firewall: place in front of the screened subnet (with its 10.100.0.1 IP facing that subnet).

The Windows PC is placed in the screened subnet (behind the firewall) for enhanced security. Remote access to this PC requires port forwarding of TCP port 3389 (RDP), which is correctly configured through the router.

The Game Console is placed on the Wireless AP LAN, using WPA2 PSK for a secure wireless connection. Game consoles typically use peer-to-peer chat and online services that require open access without firewall restrictions, which is why the console is not placed behind the firewall.

CompTIA A+ 220-1102 Reference Points:

Objective 3.4: Given a scenario, implement best practices associated with data and device security.

Objective 2.4: Given a scenario, use appropriate tools to support and configure network settings.

Study Guide Reference: CompTIA A+ Core 2 guides recommend using screened subnets (a type of DMZ) for systems needing controlled external access, such as remote desktops, while placing gaming and media devices on less restricted networks for full functionality.

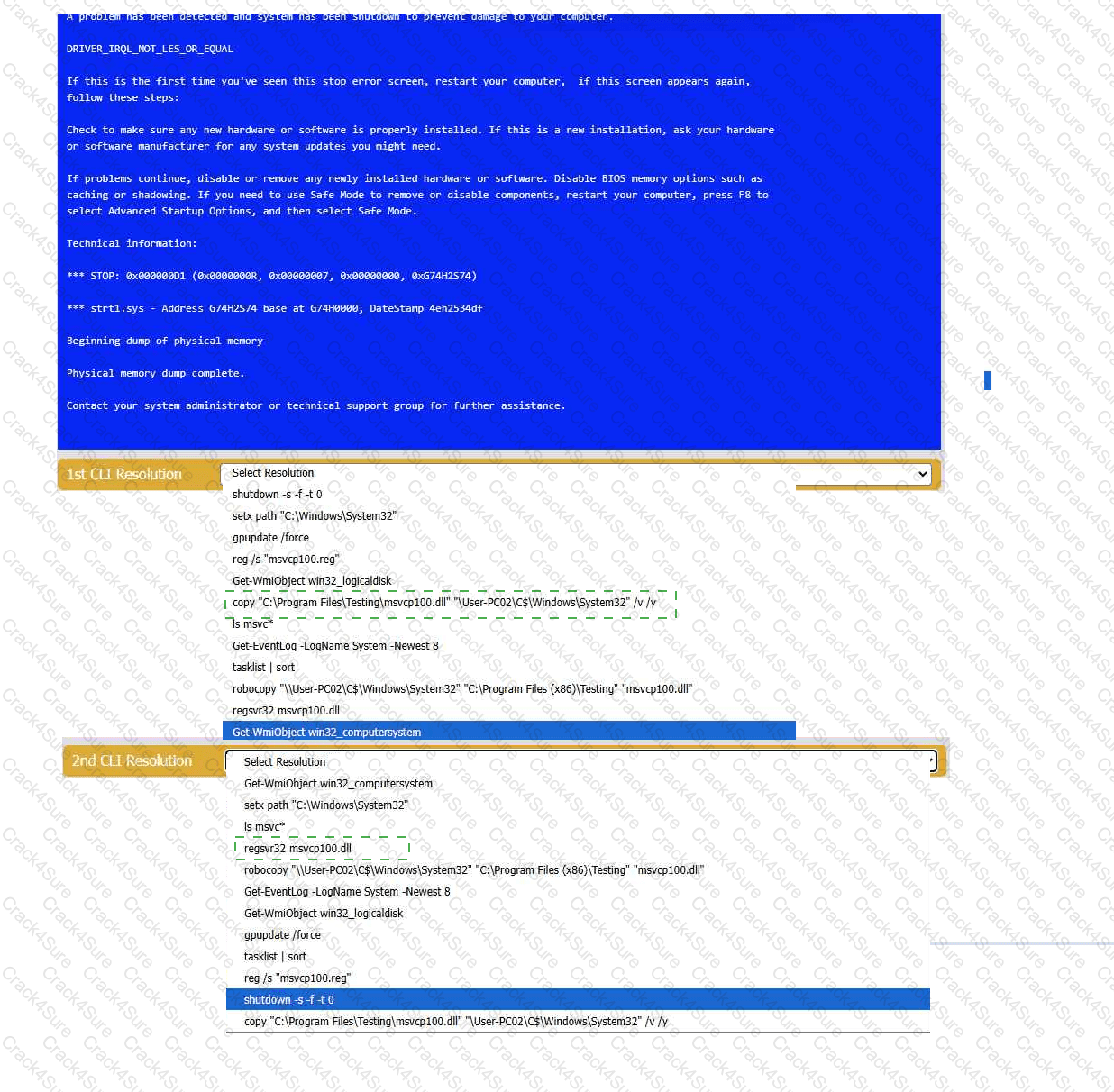

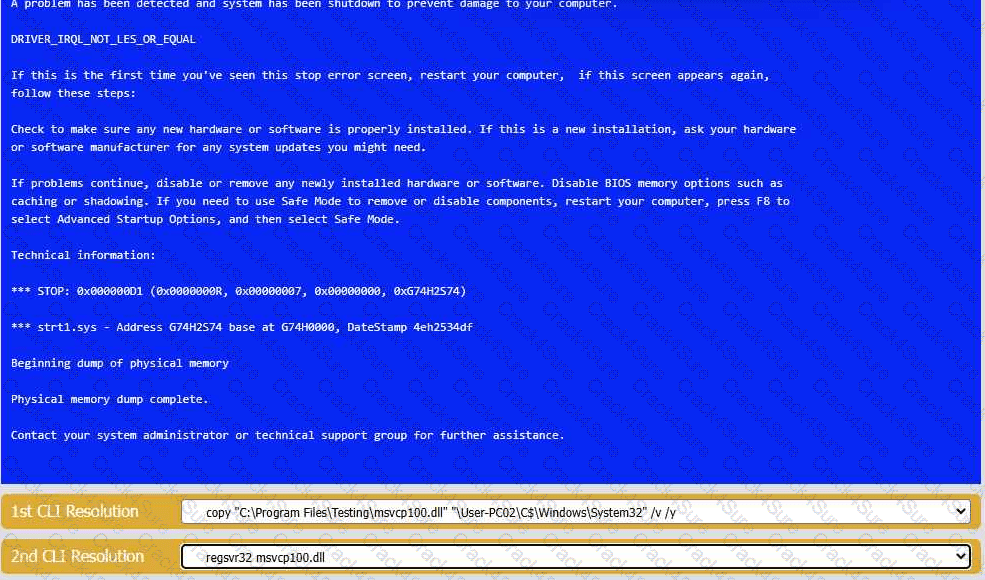

1st CLI Resolution

copy "C:\Program Files\Testing\msvcp100.dll" "User-PC02\C$\Windows\System32" /v /y

2nd CLI Resolution

regsvr32 msvcp100.dll

Why These Are the Correct Choices (Exam Logic)

Why the COPY command is first

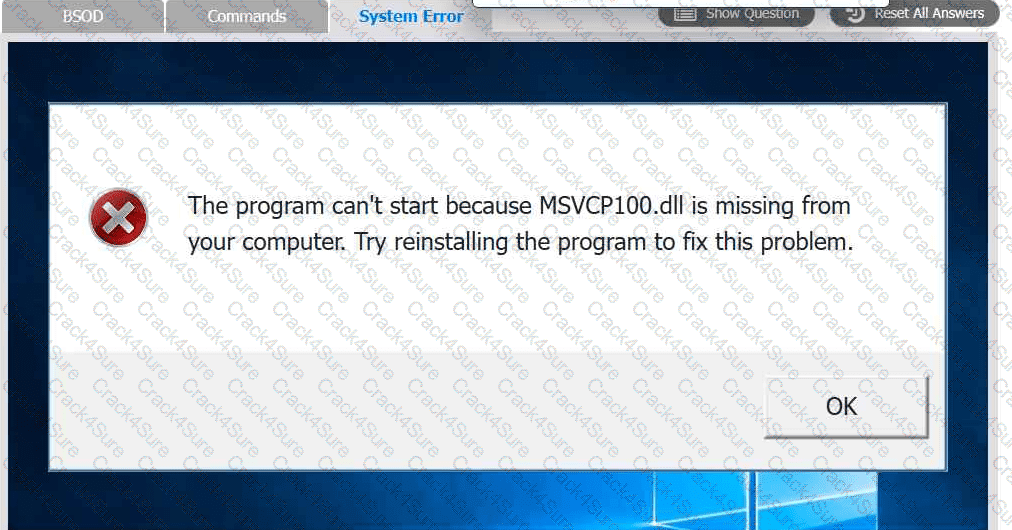

The error explicitly states MSVCP100.dll is missing

Other users can run the app ? the DLL exists on another system

The fastest, least disruptive fix (preferred by CompTIA) is to:

Copy the known-good DLL into C:\Windows\System32

The /v switch verifies the copy, and /y suppresses prompts — both are enterprise-safe defaults

This restores the missing runtime dependency immediately.

Why REGSVR32 is second

After copying a DLL, Windows may not recognize or properly load it

regsvr32 registers the DLL with the operating system

This ensures:

The Testing application can properly call the runtime library

The fix persists after reboot

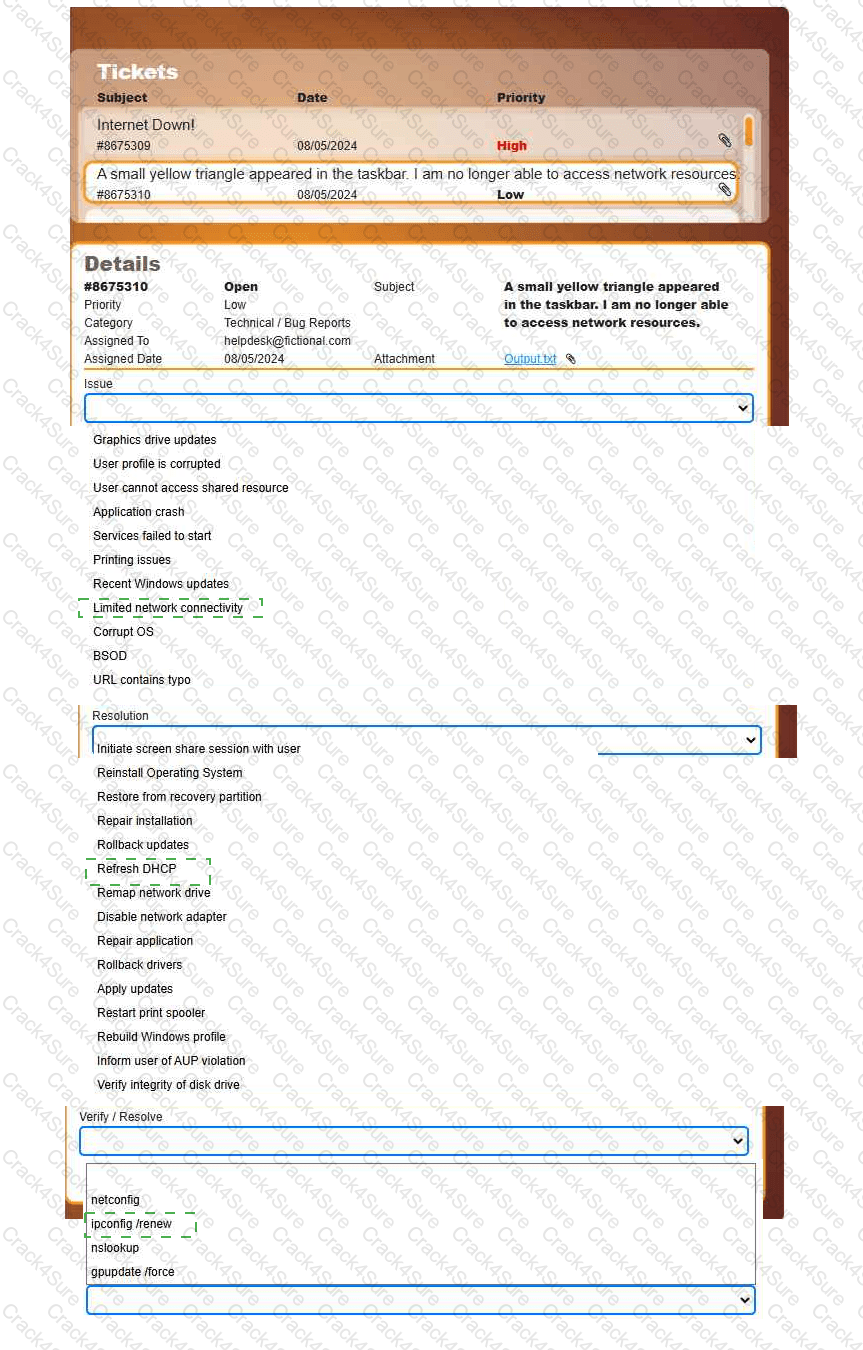

Ticket #8675310

Issue: Limited network connectivity

Resolution: Refresh DHCP

Verify/Resolve: ipconfig /renew

For the Low priority ticket #8675310 (“A small yellow triangle appeared in the taskbar. I am no longer able to access network resources.”), the Windows yellow triangle on the network icon is the classic indicator of limited connectivity (often caused by a bad/expired DHCP lease, APIPA address, missing default gateway, or DNS info not being assigned).

Correct PBQ Selections (Ticket #8675310)

Issue

Limited network connectivity

Why (CompTIA logic):

That yellow warning triangle means the NIC is connected at Layer 2 (link is up), but the system likely doesn’t have valid Layer 3 config (IP/gateway/DNS), so it can’t reach network resources.

Resolution

Refresh DHCP

Why this is the most efficient fix:

When a Windows PC can’t access network resources and shows “limited connectivity,” the fastest, lowest-risk fix is to renew DHCP so the PC can pull:

a valid IP address

default gateway

DNS servers

This directly resolves the most common root cause behind that icon.

Verify / Resolve

ipconfig /renew

Why this is the correct verification/remediation command:

ipconfig /renew is the direct command to request a fresh DHCP lease. After renewal, the user should regain access to network resources if DHCP was the issue.

What this fixes (what you’d expect to see)

Before the fix, the attachment (Output.txt) in these PBQs typically shows symptoms like:

169.254.x.x (APIPA) ? DHCP failed

Missing/blank Default Gateway

DNS not present or incorrect

After ipconfig /renew, you should see a normal private IP (like 192.168.x.x / 10.x.x.x / 172.16-31.x.x) and a valid gateway/DNS.
