From the exhibits:

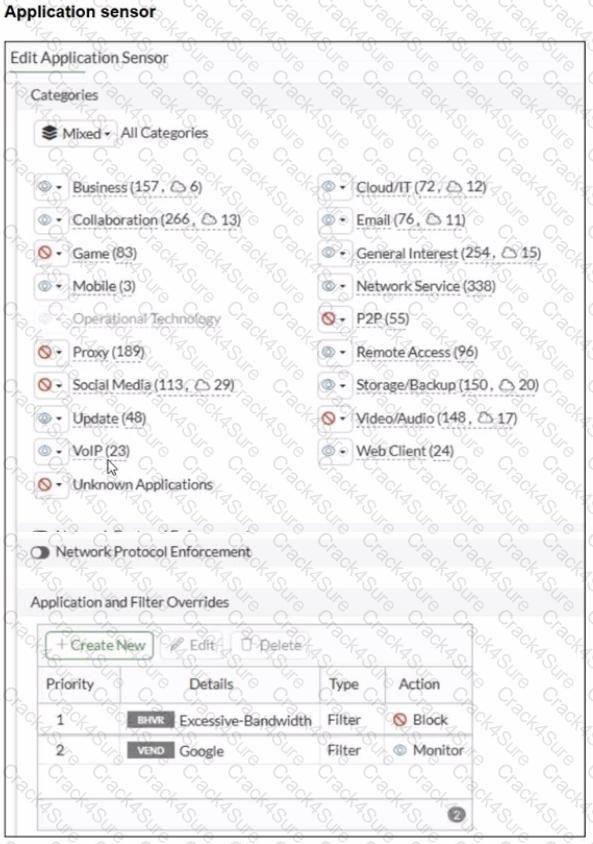

The Application Control sensor has these key settings:

Application and Filter Overrides

Priority 1: Excessive-Bandwidth (Type: Filter) with Action Block

Priority 2: Google (Type: Filter) with Action Monitor

Category actions shown include Social Media set to Block (this category includes Facebook).

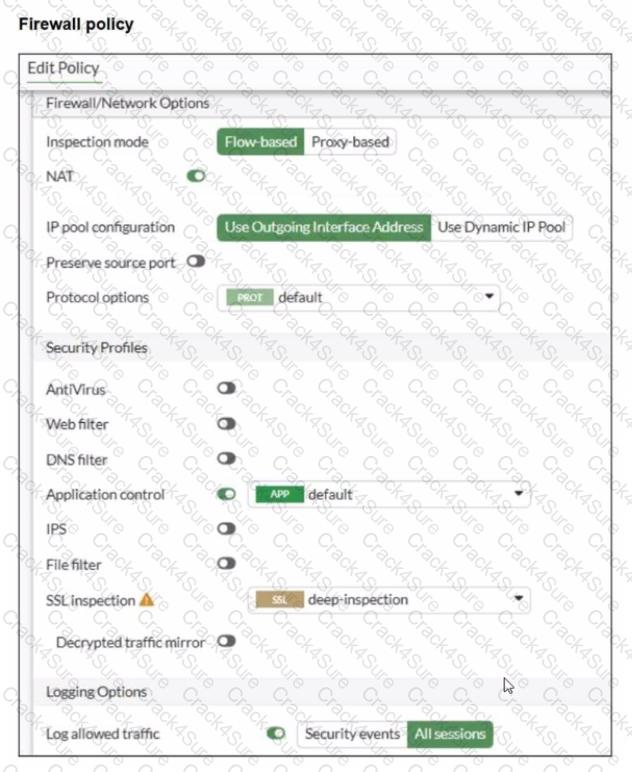

The firewall policy is using:

Flow-based inspection

Application control enabled (profile: default)

Deep inspection enabled (helps identify applications inside HTTPS)

Logging enabled

FortiOS applies Application Control as follows (top-down within the Application Control profile):

Overrides are evaluated by priority (highest priority first).

The first matching override determines the action (block/monitor/allow) for that traffic.

Category-based actions apply to applications that fall into those categories unless an override matches first.

Why A is correct

A. YouTube access is blocked based on Excessive-Bandwidth Application and Filter override settings.

The profile explicitly blocks the Excessive-Bandwidth behavior filter at the highest override priority.

When YouTube traffic is detected as matching the Excessive-Bandwidth behavior, FortiGate will apply the Block action due to the override.

Because this is a priority override, it is enforced before lower-priority entries.

Why B is correct

B. Facebook access is blocked based on the category filter settings.

The Application Sensor shows Social Media configured with a Block action.

Facebook is categorized under Social Media, so it will be blocked when matched by Application Control.

Why C is not correct

C. Facebook access is allowed but you cannot play Facebook videos...

Since the Social Media category is set to Block, Facebook would be blocked at the category level (not merely video playback).

Why D is not correct

D. YouTube search is allowed based on the Google override...

The Google override action is Monitor, not Allow.

“Monitor” logs/detects but does not override a block condition to “allow” traffic.

Also, YouTube traffic is not guaranteed to be treated as “Google” in a way that would permit it, and any matching block condition (such as Excessive-Bandwidth) would still take precedence.

“To perform SSL inspection on traffic flowing through the FortiGate device, you must allow the traffic with a firewall policy and apply an SSL inspection profile to the policy. Note that an SSL inspection profile alone will not trigger a security inspection. You must combine it with other security profiles like Antivirus, Web Filter, Application Control, or IPS.”

“By default, firewall policies are set with the no-inspection SSL profile. Therefore, any encrypted traffic flows through uninspected... For antivirus or IPS control, you should use a deep-inspection profile. ”

“When you use deep inspection, FortiGate impersonates the recipient of the originating SSL session, and then decrypts and inspects the content to find threats and block them . It then re-encrypts the content and sends it to the real recipient. Deep inspection protects from attacks that use HTTPS and other commonly used SSL-encrypted protocols...”

Technical Deep Dive:

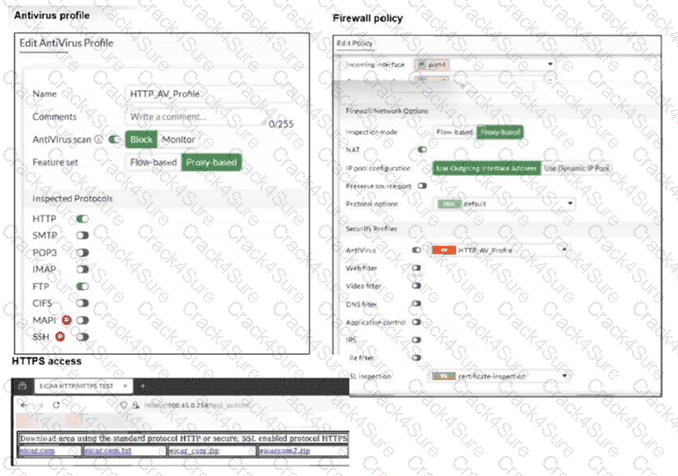

The correct answer is D . HTTP and FTP are working because FortiGate can inspect those payloads directly with the antivirus profile. HTTPS is different because the traffic is encrypted. If the firewall policy uses only certificate inspection or another non-decrypting SSL mode, FortiGate can identify certificate/SNI information, but it cannot see the downloaded file contents. Without decrypting the HTTPS session, the antivirus engine never receives the payload to scan, so EICAR or other malware can pass.

Why the other options are wrong:

A is not the issue here. The exhibit shows the antivirus profile and policy are already aligned for proxy-based operation, and the failure is specific to HTTPS visibility.

B is wrong because web filter is not required for antivirus scanning.

C is wrong because firewall policies commonly use ACCEPT with security profiles; the antivirus engine can still block the file after policy match. The study guide explicitly says ACCEPT allows the session and then applies antivirus scanning and other packet-processing features.

To fix it, apply deep-inspection on the firewall policy:

config firewall policy

edit < policy-id >

set ssl-ssh-profile " deep-inspection "

set av-profile " HTTP_AV_Profile "

next

end

On real FortiGate hardware, this also has performance implications. Simple flow handling can often stay on accelerated paths, but full SSL deep inspection forces decryption and content scanning through the inspection engine, increasing CPU/WAD workload.

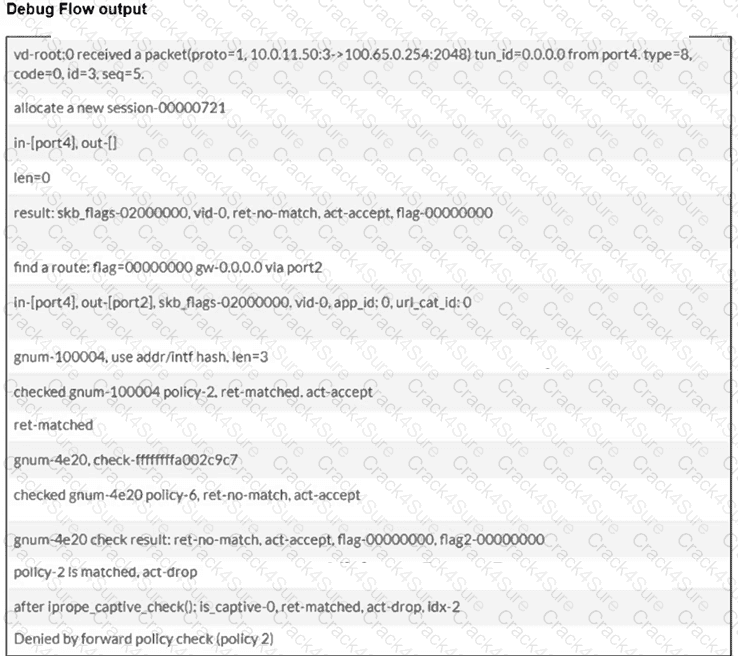

According to the FortiOS 7.6 Troubleshooting and Administration guides, the diagnose debug flow command provides a step-by-step trace of how the FortiGate unit processes a packet.

First, the line " find a route: flag=00000000 gw-0.0.0.0 via port2 " indicates that during the routing table lookup, the FortiGate matched the destination against its default route (represented by 0.0.0.0) and determined that the egress interface is port2 . This confirms that the default gateway for this traffic is reachable via port2 (Statement A).

Second, the debug trace concludes with the messages " policy-2 Is matched, act-drop " and " Denied by forward policy check (policy 2) " . This explicitly indicates that the packet successfully matched the criteria for firewall policy ID 2, and the action configured for that policy is set to Deny (Statement D).

Statement B is incorrect because a Reverse Path Forwarding (RPF) failure would be indicated by a specific " reverse path check fail, drop " message, which is absent here. Statement C is incorrect because the output shows " proto=1 " , which corresponds to ICMP (Ping) traffic. UDP traffic would be identified as protocol 17.
